Using WAPT with the Command Line¶

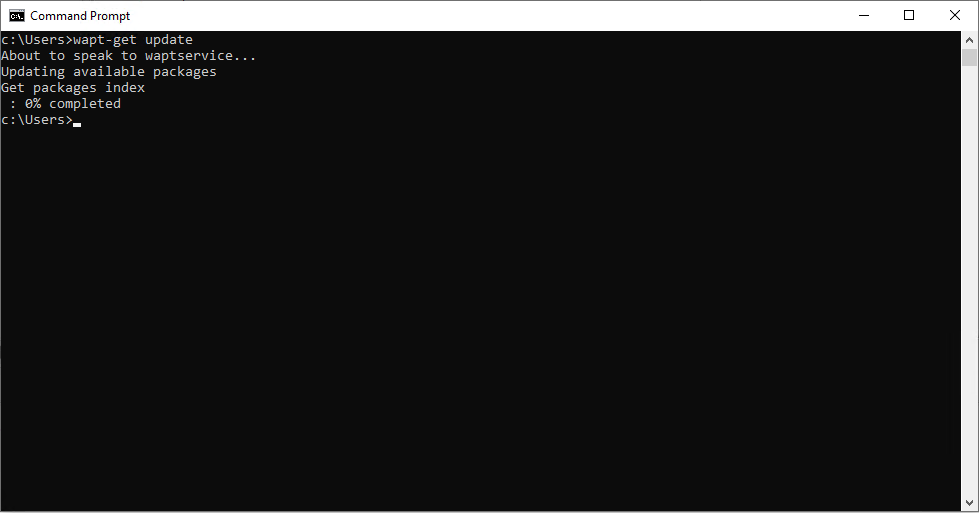

The WAPT Agent provides a command line interface utility wapt-get.

Note

By default, command-line actions in WAPT are executed with the rights of the user who launched the cmd.exe.
If the cmd.exe has not been launched with Local Administrator privileges, the command will be passed on to the waptservice.
For security reasons, some actions will require a login and a password.
Only Local Administrators and members of the waptselfservice Active Directory security group are allowed.
To force using the WAPT service as a Local Administrator, simply add -S after wapt-get.exe.

Note

Each commands that take a package name as a parameter can also take the unique package_uuid of the package as a parameter (wapt-get install, wapt-get forget, etc.). Using a GUID allows to specify a unique package without ambiguity on its architecture or version. The package_uuid is listed in the output of wapt-get list and wapt-get search. For example:

Using the more common functions in WAPT with the command line¶

wapt-get install¶

The wapt-get install command launches the installation of a WAPT package.

To install Mozilla Firefox, the command is wapt-get install tis-firefox.

Note

If the package has not been downloaded to cache, wapt-get install will first download the package to cache, then it will install it.

Attention

Installing a WAPT package with install does not add the package as a dependency to the host.

The package is installed on the host, but if the computer is re-imaged, the package will not be reinstalled automatically.

The command wapt-get install tis-firefox returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
installing WAPT packages tis-firefox
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 14121562 / 54313787 (26%) (24624 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 33131357 / 54313787 (61%) (29414 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 50511741 / 54313787 (93%) (30412 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 54313787 / 54313787 (100%) (30360 KB/s)
Installing tis-firefox(=94.0.1-106)
Installing: Firefox_Setup_94.0.1.exe
Waiting for key key Mozilla Firefox 94.0.1 (x64 en-US) to appear in Windows registry
Delete C:\Program Files (x86)\wapt\cache\tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt

Results:

=== install packages ===
  tis-firefox [x64_en_PROD]     | tis-firefox (94.0.1-106)                   | tis-firefox (50.0.2-73)

wapt-get update¶

The wapt-get update command allow to update the list of available packages.

The local WAPT Agent will download Packages file from the private repository and compare it to its local database.

If new updates are available, the WAPT Agent switches the packages status to TO-UPGRADE.
If new software have been added on the repository, they become downloadable by the WAPT Agent.

Note

The wapt-get update command does not download packages, it only updates the local database of packages.

The command wapt-get update returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Update package list from https://srvwapt.mydomain.lan/wapt, https://srvwapt.mydomain.lan/wapt-host
Total packages : 8
Added packages :

Removed packages :

Discarded packages count : 6
Pending operations :
  install:
  upgrade:
  additional:
  remove:
  immediate_installs:
Repositories URL :
  https://srvwapt.mydomain.lan/wapt
  https://srvwapt.mydomain.lan/wapt-host

wapt-get upgrade¶

The command wapt-get upgrade allows to launch the installation of packages waiting to be upgraded or waiting to be installed.

The local WAPT Agent downloads if necessary WAPT packages in its local cache then installs them.

Hint

It is strongly advised to launch a wapt-get update command before launching a wapt-get upgrade command.

Without previously launching a wapt-get update, the WAPT Agent will install nothing.

The command wapt-get upgrade returns:

Installing tis-mumble
Shutting down Mumble
installing Mumble 1.2.3

=== install packages ===
tis-mumble

wapt-get remove¶

The remove <package name> command removes a package.

The command takes the package name with the repository prefix as argument.

To remove Mozilla Firefox, the command is wapt-get remove <prefix>-firefox.

Attention

Removing a WAPT package with wapt-get remove does not remove the package dependency on the host.

The package will effectively be uninstalled from the host, but it will automatically be reinstalled on the next upgrade.

To completely remove a package from a host, do a wapt-get remove for the targeted package, then edit the host configuration via the WAPT Console to remove the package dependency on the host.

The command wapt-get remove tis-firefox returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Removing tis-firefox ...

Waiting for the removal of key key Mozilla Firefox 94.0.1 (x64 en-US) from Windows registry
=== Removed packages ===
  tis-firefox

wapt-get uninstall¶

The wapt-get uninstall <package name> command run the uninstall package function if exist.

The command takes on argument. That argument is the name package or a list of package names with the repository prefix.

Attention

Run the uninstall package function doesn’t remove the package on the host.

The command wapt-get uninstall tis-adwcleaner returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
 Uninstalling tis-adwcleaner ...
 None
 Uninstallation done

wapt-get forget¶

The wapt-get forget <package name> command install status for package from local database.

The command takes on argument. That argument is the name package or a list of package names with the repository prefix.

Attention

Forgetting the package doesn’t uninstall the package.

The command wapt-get forget tis-adwcleaner returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini

=== Packages removed from status ===
  tis-adwcleaner

wapt-get audit¶

The wapt-get audit [<package name>] command run the audit function.

The command takes on argument. That argument is the name package or a list of package names with the repository prefix.

If the argument is defined, the wapt-get audit [<package name>] command runs the package audit function.

Also, the wapt-get audit command runs the audit function for all packages installed on the host.

The command wapt-get uninstall tis-firefox returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Auditing tis-firefox ...
Auditing tis-firefox
OK: Uninstall Key Mozilla Firefox 94.0.1 (x64 en-US) in Windows Registry.
tis-firefox -> OK

wapt-get show¶

The wapt-get show <package name> command displays informations stored in the Packages index file.

If several versions of a WAPT package are available on the WAPT repository, every version of the package will be displayed.

The command wapt-get show tis-7zip returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Display package control data for tis-7zip

package           : tis-7zip
version           : 19.00-25
architecture      : x64
section           : base
priority          : optional
name              : 7-Zip
categories        : Utilities
maintainer        : WAPT Team,Tranquil IT,Jimmy PELÉ
description       : 7-Zip is a free and open-source file archiver with a high compression ratio
depends           :
conflicts         :
maturity          : PROD
locale            : all
target_os         : windows
min_wapt_version  : 1.7
sources           : https://www.7-zip.org/download.html
installed_size    :
impacted_process  : 7zFM,7z,7zG
description_fr    : 7-Zip est un logiciel gratuit et open source pour archiver des fichiers avec un taux de compression élevé
description_pl    :
description_de    : 7-Zip ist ein Datenkompressionsprogramm mit einer hohen Kompressionsrate
description_es    : 7-Zip es un archivador de ficheros con una alta relación de compresión
description_pt    : O 7-Zip é um compactador de arquivos com alta taxa de compressão
description_it    :
description_nl    :
description_ru    : 7-Zip свободный файловый архиватор с высокой степенью сжатия данных
audit_schedule    :
editor            : Igor Pavlov
keywords          : 7zip,7,zip,7-zip,file,archiver,high,compression,ratio
licence           : LGPL
homepage          : https://www.7-zip.org/
package_uuid      : dc66ccd1-d987-482e-b792-04e89a3803f7
valid_from        :
valid_until       :
forced_install_on :
changelog         : https://www.7-zip.org/history.txt
min_os_version    : 5.0
max_os_version    :
icon_sha256sum    : eddc038d3625902b6ddeaabd13dd91529e8d457ffbd0c554f96d343ae243a67a
signer            : documentation
signer_fingerprint: 3f2c0a02231a36eafa1f67905f5c083e4b66cb59942f69cbd231d778a1a25b3d
signature         : QzhPeZFrRbjcGzfqRpoWsDP9Plaz6BBVlL3adq/MRM19D61+Aez/JiA8skriCgwSErJXbxOPfxusVqqIpEtyoqh/RlRcnmgCQqk2Fig4gmxpz0rHKokukPQlRk+HdC/uByxSjfp9oXuB3PVG2PZAFifjVBtjEX2QmV+OY6NdMI9dtkxCsn1Xotn2qhu2bwbJWQ0s51rD9emWuQR7l/8WXl+HoquuRho4aCeAOYd6Nta9ktVSR2FM6OO5ZeUOg4fsnMg+hwp2MlDOmBHX37aJm3hLYkGP2xWjpL9YDDxI7ruRXSHyT7YmbILrS0h1m3PTOiV8jy1hTLDgKVeptPWVgA==
signature_date    : 2021-11-19T16:15:42.019196
signed_attributes : package,version,architecture,section,priority,name,categories,maintainer,description,depends,conflicts,maturity,locale,target_os,min_wapt_version,sources,installed_size,impacted_process,description_fr,description_pl,description_de,description_es,description_pt,description_it,description_nl,description_ru,audit_schedule,editor,keywords,licence,homepage,package_uuid,valid_from,valid_until,forced_install_on,changelog,min_os_version,max_os_version,icon_sha256sum,signer,signer_fingerprint,signature_date,signed_attributes
filename          : tis-7zip_19.00-25_x64_windows_0f4137ed1502b5045d6083aa258b5c42_5.0_PROD_a10c57d7848cf7b145d6cd64bf4d5389.wapt
size              : 1704227
md5sum            : a10c57d7848cf7b145d6cd64bf4d5389

OK Package control signature checked properly by certificate documentation (fingerprint: 3f2c0a02231a36eafa1f67905f5c083e4b66cb59942f69cbd231d778a1a25b3d )

Note

A warning message may display with this command, for example:

WARNING: control data signature can not be validated with certificates [<SSLCertificate cn='documentation' fingerprint=3f2c0a  issuer='documentation' validity=2021-11-19 - 2031-11-17 Code-Signing=True CA=True>]

This is normal if your certificate is not trusted. Only control file is available for wapt-get show not all package. .. CLARIFY ABOVE

If you want to check the package, download it to cache and run the wapt-get show on the local package.

For example:

wapt-get download tis-7zip
wapt-get show "C:\Program Files (x86)\wapt\cache\tis-7zip_19.00-25_x64_windows_0f4137ed1502b5045d6083aa258b5c42_5.0_PROD_a10c57d7848cf7b145d6cd64bf4d5389.wapt"

wapt-get show-params¶

The wapt-get show-params <package name> command return lists of parameters that would be passed to the wapt-get install <package name> --params=PARAMS command.

The command takes on argument. That argument is the name package or a list of package names with the repository prefix.

The command wapt-get show tis-7zip returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
tis-7zip : {True, 'documentation': True}

wapt-get show-log¶

The wapt-get show-log <package name> command return the latest audit logs stored in the agent’s local sqlite database.

The command takes on argument. That argument is the name package or a list of package names with the repository prefix.

The command wapt-get show tis-7zip returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Package: tis-7zip (21.06-34) PROD
-------------------
Status: OK

Installation log:
-------------------
Installing: 7z2106-x64.msi
Waiting for key key {23170F69-40C1-2702-2106-000001000000} to appear in Windows registry


Installation Parameters:
-------------------
{}

Last audit:
-------------------
Status: OK
Date: 2022-01-06T10:32:38.698272

Output:
Auditing tis-7zip
OK: Uninstall Key {23170F69-40C1-2702-2106-000001000000} in Windows Registry.


Next audit on: 2022-01-06T10:32:38.698272

wapt-get search¶

The wapt-get search command allows to search for one or more package in the repositories.

Warning

This command returns only WAPT packages available for the host executing the command, according to the host’s locale, operating system, architecture or maturity.

If a WAPT package with another locale, operating system, architecture or maturity exists in the repository, it will not be listed.

The search command takes one argument to be looked up in package name and description.

The command wapt-get search "Firefox" returns (for example):

  status     package            version    target_os       architecture maturity locale description                                                                      repo
---------- ------------------ ---------- --------------- ---- ----- --- -------------------------------------------------------------------------------- ----------
-          tis-firefox        94.0.2-106 windows         x64  PROD  fr  Mozilla Firefox est un navigateur web gratuit et open source                     wapt
I          tis-config-firefox 68.3-6     windows         all  PROD      Configuration for Mozilla Firefox - The package will not have any effect if an*  wapt
I          tis-firefox-esr    91.3.0-105 windows         x64  PROD  fr  Mozilla Firefox Extended Support Release (ESR) est une version officielle de*    wapt

Value	status	package	version	target_os	architecture	maturity	locale	description	repo
Description	Packages installation status	Name of package	Version of package	Target OS (if defined)	Architecture of CPU (if defined)	Maturity of package (if defined)	Locale of package (if defined)	Description of package	Folder of package on the WAPT Server

Note

The value of status defines the installation status as follow:

- for not installed

I for installed

wapt-get download¶

The wapt-get download <package name> command downloads the WAPT package to the local cache located at C:\Program Files\wapt\cache.

The command wapt-get download tis-7zip returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Downloading packages tis-7zip(=19.00-25)
https://srvwapt.mydomain.lan/wapt/tis-7zip_19.00-25_x64_windows_0f4137ed1502b5045d6083aa258b5c42_5.0_PROD_a10c57d7848cf7b145d6cd64bf4d5389.wapt : 1704227 / 1704227 (100%) (11804 KB/s)

Downloaded packages:
  C:\Program Files (x86)\wapt\cache\tis-7zip_19.00-25_x64_windows_0f4137ed1502b5045d6083aa258b5c42_5.0_PROD_a10c57d7848cf7b145d6cd64bf4d5389.wapt

wapt-get download-upgrade¶

The wapt-get download-upgrade command downloads packages to be upgraded to the local WAPT cache C:\Program Files (x86)\wapt\cache.

The command wapt-get download-upgrade returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 18466658 / 54313787 (34%) (32089 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 36390179 / 54313787 (67%) (32693 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 52684289 / 54313787 (97%) (31564 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 54313787 / 54313787 (100%) (30747 KB/s)

=== downloaded packages ===
  C:\Program Files (x86)\wapt\cache\B8D346E7-DDDB-0013-5A8A-425CF3B6199E.wapt
  C:\Program Files (x86)\wapt\cache\tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt

wapt-get list¶

The wapt-get list command lists WAPT packages that are installed on the computer.

The command wapt-get list returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
package                              version    install_status install_date     description                                                                      package_uuid
------------------------------------ ---------- ---------- ---------------- -------------------------------------------------------------------------------- ------------------------------------
tis-7zip                            21.06-34   OK         2021-12-10T14:57 7-Zip is a free and open-source file archiver with a high compression ratio      717a30cc-0d44-42d1-9538-0f2f298d8603
tis-firefox                         94.0.1-106 OK         2021-12-10T14:58 Mozilla Firefox is a free and open-source web browser                            5a91f54a-3e27-44cf-a2b6-6b84012aa3a2

package	version	install status	install_date	description	package_uuid
Package Name	Package Version	Installation status	Date and time of installation	Package description	Unique UUID of the package

wapt-get list-upgrade¶

The wapt-get list-upgrade command lists WAPT packages that are need to be upgraded on the host.

The command wapt-get list-upgrade returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini

=== upgrade packages ===
tis-notepadplusplus(=8.2-10)

wapt-get -S tasks¶

The wapt-get -S tasks command check if some tasks are running or pending in queue.

The command wapt-get -S tasks returns:

About to speak to waptservice...
Running task 14: Uninstall of tis-vlc (task #14), status:

Using special Command Lines with WAPT¶

wapt-get clean¶

The wapt-get clean command removes packages from the C:\Program Files (x86)\wapt\cache folder.

The command is launched after each upgrade to save disk space.

The command wapt-get clean returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Removed files:
C:\Program Files (x86)\wapt\cache\tis-mumble_1.2.3-1_all.wapt
C:\Program Files (x86)\\wapt\cache\tis-vlc_1.2.3-2_all.wapt

wapt-get upgradedb¶

The wapt-get upgradedb command upgrades the local WAPT database schema if necessary.

The command wapt-get upgradedb returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
WARNING upgrade db aborted: current structure version 20210420 is newer or equal to requested structure version 20210420
No database upgrade required, current 20210420, required 20210420

wapt-get add-upgrade-shutdown - wapt-get remove-upgrade-shutdown¶

These 2 commands modify this file : C:WindowsSystem32GroupPolicyMachineScriptsscripts.ini.

The wapt-get add-upgrade-shutdown command adds a waptexit local security policy object, enabling the execution of waptexit at system shutdown.

The command wapt-get add-upgrade-shutdown returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
0

The scripts.ini contains:

[Shutdown]
0CmdLine = C:\Program Files (x86)\wapt\waptexit.exe
0Parameters =

The wapt-get remove-upgrade-shutdown command removes the waptexit local security policy object, disabling the execution of waptexit during system shutdown.

The command wapt-get add-upgrade-shutdown returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
0

The scripts.ini contains:

[Shutdown]

wapt-get register¶

The wapt-get register <description> command reports the computer hardware and software inventory to the WAPT inventory Server.

Hint

You can pass a description as an argument to the wapt-get register, that description will be displayed in the WAPT Console in the column description.

You may benefit from WAPT to improve your IT management by affecting a username or a computer serial as descriptions for your hosts.

Note

If the host is already registered, the new execution with a description updates the registered information.

It is not necessary to define a description to register the host with the command line.

The command wapt-get register "John Doe PC" returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Registering host against server: https://srvwapt.mydomain.lan
Host correctly registered against server https://srvwapt.mydomain.lan.wapt-get inventory

wapt-get unregister¶

The wapt-get unregister command remove the computer hardware and software inventory to the WAPT inventory server.

The command wapt-get unregister returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Unregistering host from server: https://srvwapt.mydomain.lan
Please get login for api/v3/hosts_delete:admin
Password:
Host correctly unregistered against server https://srvwapt.mydomain.lan.

wapt-get inventory¶

The wapt-get inventory command displays all local inventory information in JSON format.

The command wapt-get inventory returns (in part):

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
{
  "host_info": {
    "description": "John Doe PC",
    "system_manufacturer": "Xen",
    "system_productname": "HVM domU",
    "computer_name": "Documentation",
    "computer_fqdn": "Documentation.srvwapt.mydomain.lan",
    "dnsdomain": "mydomain.lan",
    "workgroup_name": "Documentation",
    "domain_name": null,
    "domain_controller": null,
    "domain_controller_address": null,
    "domain_info_source": "history",
    "networking": [
    {
      "iface": "{085AB96368A-05A3B96-43EC-B773-0C0BB96794D9}",
      "mac": "a2:1d:6e:fc:8d:e6",
      "addr": [
      {
        "addr": "192.168.0.1",
        "netmask": "255.255.255.0",
        "broadcast": "192.168.0.255",
        "connected": true
      },
      {
        "addr": "fe80::2437:567f:79c8:f964",
        "netmask": "ffff:ffff:ffff:ffff::/64",
        "broadcast": "fe80::ffff:ffff:ffff:ffff%3",
        "connected": true
      }
      ]
    }
    ],
    "gateways": [
    "192.168.0.254"
    ],
    "dns_servers": [
    "192.168.0.11"
    ],
    "connected_ips": [
    "192.168.0.1",
    "fe80::2437:567f:79c8:f964"
    ],
    "mac": [
    "a2:fc:1d:6e:8d:e6"
    ],
...

wapt-get update-status¶

The command wapt-get update-status resends local status to the WAPT inventory Server.

Note

If a hardware component has changed on the computer, wapt-get update-status would not report that information back to the WAPT inventory Server.

To do so, the command to use is wapt-get inventory.

The command wapt-get update-status returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Updated host status correctly sent to the WAPT Server https://srvwapt.mydomain.lan. {'success': True, 'msg': 'update_host', 'result': {'uuid': 'B8D346E7-DDDB-0013-5A8A-425CF3B6199E', 'computer_fqdn': 'documentation.mydomain.lan', 'status_hashes': {'dmi': '124b8bcef5b690afea7cf8001351a22132885123', 'wmi': 'ae5dbb5627b7b3a5a31d5914a9dbf48b85b133da', 'host_info': 'e737a82da15fbe9cae88ba9b4a9662a73657d959', 'audit_data': None, 'wapt_status': 'bcb76ad07cf1b6f814082ec5a58c4fee0364a640', 'audit_status': 'c34adb535c711b59d4408f00f77b7392687d7e56', 'host_metrics': '9fc68bd98c82e0e9bece0ce3afaeeb63a3ed1db1', 'waptwua_status': '4f9dcf0af339ce28d7354283fd4e6bdaf17b85c8', 'waptwua_updates': 'c5cf38908fc549f499ade5b17ce221ff0ced377f', 'wuauserv_status': '7c30215c3c34566e5b0c69c9e1dbfe3e6117b837', 'host_capabilities': 'c31286122a213f3bb313531541582bb2ba1d0a81', 'installed_packages': '3279f3bf4d5ed5086b198fa94a6a6f422f519ab3', 'last_update_status': '347c5a8c01e182f1e03e5c9d0fe07dd87ab79153', 'installed_softwares': 'd582a6f7325af35eae17cb7ecdca59ef0d137dda', 'authorized_certificates': '2974f9535f813fc454b735193c31828b132a6ba0', 'waptwua_updates_localstatus': 'c5cf38908fc549f499ade5b17ce221ff0ced377f'}, 'server_uuid': '82295c4d-4944-11ec-bac6-a25b5d7da3d5'}, 'request_time': 0.046843767166137695}

wapt-get setlocalpassword¶

The wapt-get setlocalpassword command allows to define a local password for WAPT package installations.

The command wapt-get setlocalpassword returns:

Local password:
Confirm password:
Local auth password set successfully

wapt-get reset-uuid¶

The wapt-get reset-uuid command retrieves the host’s UUID from BIOS and resends it to the WAPT inventory Server.

The command wapt-get reset-uuid returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
New UUID: B0F23D44-86CB-CEFE-A8D6-FB8E3343FE7F

wapt-get generate-uuid¶

The wapt-get generate-uuid command creates a new host UUID and resends it to the WAPT inventory Server.

The wapt-get generate-uuid is useful if you have bios UUID bugs on your hosts.

The command wapt-get generate-uuid returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
New UUID: RND-0279A1F4-BBBE-43AE-A591-F82652E0104B

Note

All randomly generated UUID put an RND- in front of.

wapt-get get-server-certificate¶

The wapt-get get-server-certificate command downloads the SSL certificate from the WAPT Server to use HTTPS to communicate with the WAPT Server.

The downloaded certificate is stored in C:\Program Files(x86)\waptssl\server.

The command wapt-get get-server-certificate returns:

Server certificate written to C:\Program Files (x86)\wapt\ssl\server\srvwapt.mydomain.lan.crt

wapt-get enable-check-certificate¶

The wapt-get enable-check-certificate command downloads the SSL certificate from the WAPT Server and enables secured communication with the WAPT Server.

The wapt-get enable-check-certificate command is used for activating the verification of the SSL / TLS certificate.

The command wapt-get enable-check-certificate returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Server certificate : C:\Program Files (x86)\wapt\ssl\server\template-auto.test.lan.crt
Certificate CN: template-auto.test.lan
Pining certificate C:\Program Files (x86)\wapt\ssl\server\template-auto.test.lan.crt

wapt-get check-upgrades¶

The wapt-get check-upgrades command show last updates/upgrade status on the host.

The command wapt-get check-upgrades returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
{
  "running_tasks": [],
  "errors": [],
  "date": "2022-01-06T14:09:26.554391",
  "upgrades": [
    "tis-notepadplusplus(=8.2-10)"
  ],
  "pending": {
    "install": [],
    "upgrade": [
    "tis-notepadplusplus(=8.2-10)"
    ],
    "additional": [],
    "remove": [],
    "immediate_installs": []
  }
}

wapt-get add-licence¶

The wapt-get add-licence command add the licence on the server.

The command wapt-get add-licence returns:

Using config file C:\Program Files (x86)\wapt\wapt-get.ini
Server: https://srvwapt.mydomain.lan
Server UUID: 82295c4d-4944-11ec-bac6-a25b5d7da3d5
Server CABundle: 0

{"licence_nr":"6f011e23-cb70-40a4-b340-0d18ae1e2f02","product":"WAPT Enterprise","features":["full"],"licenced_to":"documentation","domain":"","contact_email":"documentation@tranquil.it","count":"10","valid_from":"2021-06-14T00:00:0","valid_until":"2022-01-12T00:00:0","renewal_url":null,"signed_attributes":["licence_nr","product","features","licenced_to","domain","contact_email","count","valid_from","valid_until","renewal_url","signed_attributes","signer","signature_date","signer_certificate","server_uuid"],"signer":"","signature_date":"2022-01-13T16:38:56","signer_certificate":"-----BEGIN CERTIFICATE-----\nMIIEIjCCAwqgAwIBAgIUIOMdx8FmRdmCNTHxOfKecSp/cAAwDQYJKoZIhvcNAQEL\nBQAwgZcxCzAJBgNVBAYTAkZSMSIwIAYDVQQHDBlTYWludCBTZWJhc3RpZW4gc3Vy\nIExvaXJlMRwwGgYDVQQKDBNUcmFucXVpbCBJVCBTeXN0ZW1zMSAwHgYDVQQDDBdy\nZWxpY2VuY2luZy50cmFucXVpbC5pdDEkMCIGCSqGSIb3DQEJARYVdGVjaG5pcXVl\nQHRyYW5xdWlsLml0MB4XDTIxMDYwODE0MTQ0MVoXDTMxMDYwNjE0MTQ0MVowgZcx\nCzAJBgNVBAYpk6dZrIrw9Kb5hee+1EgqEbudCBTZWJhc3RpZW4gc3VyIExvaXJl\nMRwwGgYDVQQKDBNUcmFucXVpbCBJVCBTeXN0ZW1zMSAwHgYDVQQDDBdyZWxpY2Vu\nY2luZy50cmFucXVpbC5pdDEkMCIGCSqGSIb3DQEJARYVdGVjaG5pcXVlQHRyYW5x\ndWlsLml0MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAzT43W8OhWXAe\nhDB+IWwQm9IGGdR0VY/klKcSheo/8jGlNziyH6BANhjFKYNX9UtQ+ghzv6BGfSTH\nyua1aXEQM89sSKFOoJztoD1L9FZtuWQb/vfLWkisP8fRPvH4B/tYG+5nchGa6+6r\nqGSGSpWcnj6CovgQR01ATUuHN3NV1N7q48hBT/ZT9R5U3sEi+hNK4eRIeZ220Pzm\nDoNGkVKlEiczgXuM77ezYp8UWvpk6dZrIrw9Kb5hee+1EgqEbgVmdARoaOPGTK8h\n8VW+milWsl4TEY19kxXWvva+M6wX00ipJ2LxEiu5+dlOok9E8i405UTNE7oSVYsF\n90/6S3C4twIDAQABo2QwYjAPBgNVHRMBAf8EBTADAQH/MCAGA1UdJQEB/wQWMBQG\nCCsGAQUFBwMDBggrBgEFBQcDAjAdBgNVHQ4EFgQUpRT6Co2uoWZMCwP7FKiF73+j\nfAEwDgYDVR0PAQH/BAQDAgHWMA0GCSqGSIb3DQEBCwUAA4IBAQAdXX5IkpuH/Gek\nPPHC4KvE/6GsU0kqLI1w5ML5pbF1zyCCL0nm4f8w2JJIJ2Ycdb4QVD27kJqgZcH1\nniYQ3RCIh6aasS8qpCOf90KkpvKMJiyk/ra7I6NSgPut4ErkoxUWocgF6SNFEjwB\naqUZY//Hkoqk2dXqdujLVGJfBpX95ZJ9PmFNLfsyUsvu1WcFMb0En0EUO74Mq4M3\nKo2S86G9pEDKooaN5Vq19biReOwQYpX1YlSLtrxFx8AM87auQgaD8EWSdA1q2ycN\n8ZnmXGxAhDv8hmE2Fv0x0t3hzYXxxcv1ZjYWRHlMUl/buWQQ35u9MFkjh7YZlTlM\nb9wjtN+W\n-----END CERTIFICATE-----\n","signature":"J7DZ+mja7zGghYFCDKh8WIxzzdhKPeoNswWjnKZziT+ddpoRdg45kZz4E8PxMIUzhTI8WIxzzdhKPeoNswrICpQ8t5kepzovZpoONwjgOQ5PoCAgDOE3NV+larFrMdkAjCpx4tV86n5gyXHJnlnH1OXCpKUBiIiP/de18bEgSSlgjXgE/wr2ZfclsRsRRfsRbGSterRKQcthNDrFlf8RjH5cpDnDvMJ+qJtTsqxA13/WT2NS2uNWZI93si/9mowWY8MdT/PZjosciCqijbq4oa+/FrPsALhUOtcGE9JylwknszUD5Ayfh+9sNLLxsG6eT0JlnNgf4nx9mXAu4GBg==","server_uuid":"82295c4d-4944-11ec-bac6-a25b5d7da3d5"}
Login to server api/v3/licences
Waptserver https://srvwapt.mydomain.lan Admin User () :admin
Waptserver Password: ************
Licence properly activated on server

wapt-get check-licences¶

The wapt-get check-licences command shows the licences registered on the server.

The command wapt-get check-licences returns:

Using config file C:\Program Files (x86)\wapt\wapt-get.ini
Server: https://srvwapt.mydomain.lan
Server UUID: 36bf01bc-c8f5-11eb-bf04-36127be97253
Server CABundle: 0

Total licences count: 10
Licenced to: documentation

Valid Nr:b7b6e537-3cb7-4d9a-3cb7-2448020e2e51 Count:10 From:2022-01-13T00:00:0 Expire:2023-01-12T23:59:0 Server:36bf01bc-c8f5-11eb-bf04-36127be97253 Licencee:documentation

wapt-get dnsdebug¶

The wapt-get dnsdebug command shows the local dns informations.

The command wapt-get dnsdebug returns:

DNS Server : dns.mydomain.lan
DNS Domain : mydomain.lan
Main repo url: https://srvwapt.mydomain.lan/wapt
wapt SRV: []
waptserver SRV: []
CNAME: []

Using the Command Line for user session setup¶

wapt-get session-setup¶

The wapt-get session-setup command launches user level customizations of installed WAPT packages.

The wapt-get session-setup command runs the session-setup function in the setup.py file.

Note

The argument ALL will launch wapt-get session-setup for all installed WAPT packages.

The command wapt-get session-setup ALL returns:

Configuring tis-7zip ... No session-setup. Done
Configuring tis-ccleaner ... Already installed. Done
Configuring tis-vlc ... No session-setup. Done
Configuring mdl-tightvnc ... No session-setup. Done
Configuring tis-brackets ... No session-setup. Done
Configuring mdl-firefox-esr ... No session-setup. Done
Configuring tis-paint.net ... No session-setup. Done

Using the Command Line to create WAPT packages¶

wapt-get list-registry¶

The wapt-get list-registry <keyword> command lookups a keyword in software installed on the computer.

The command can take an argument, not case sensitive, to search for a specific word: wapt-get list-registry <keyword>.

The informations returned is:

Information	Definition	Available on Windows	Available on Linux	Available on Mac OS
UninstallKey	Uninstall key indentifier in the registry
Software	Name of the software in the registry
Version	Version of the software in the registry
Uninstallstring	Uninstall string of the software in the registry

Note

On Windows, this informations is collected by WAPT from the registry in two localisation :
- ComputerHKEY_LOCAL_MACHINESOFTWAREMicrosoftWindowsCurrentVersionUninstall
- ComputerHKEY_LOCAL_MACHINESOFTWAREWOW6432NodeMicrosoftWindowsCurrentVersionUninstall
On Linux, this informations is collected by WAPT in Applications
On Mac OS, this informations is collected by WAPT in /var/lib/dpkg/info/

The command wapt-get list-registry firefox returns (on Windows):

The output of wapt-get list-registry is a table listing uninstall keys for each software corresponding to the search term.

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
UninstallKey                           Software                               Version             Uninstallstring
---------------------------------------------------------------------------------------------------------------------------------------------------------
Mozilla Firefox 45.5.0 ESR (x64 fr)    Mozilla Firefox 45.5.0 ESR (x64 fr)    45.5.0              "C:\Program Files\Mozilla Firefox\uninstall\helper.exe"

wapt-get sources¶

The wapt-get sources <package name> command downloads sources from a source code management platform like Git or SVN.

The command wapt-get sources tis-firefox returns nothing;

wapt-get make-template¶

Warning

This method is deprecated, instead use the WAPT Console to create a package template.

The wapt-get make-template <installer-path> [<packagename> [<source directoryname>]] command allows to create a package template from a MSI or an EXE installer.

Use this arguments:

Argument	Definition	Default value
installer-path	Installer path of the binary	Not default value, it’s necessary
packagename	Name of package	If it is not defined, the package name is created like `prefix-binary-name_package-version-wapt`
source directoryname	Directory to save the source files	If not defined, it’s the value of `default_sources_root` in `waptconsole.ini`

The command wapt-get make-template C:\Users\User\Downloads\tightvnc.msi tis-tightvnc returns:

Using config file: C:\Users\Documentation\AppData\Local\waptconsole\waptconsole.ini
Template created. You can build the WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-package C:\waptdev\tis-tightvnc-wapt
You can build and upload the WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-upload C:\waptdev\tis-tightvnc-wapt

Hint

If you have previously installed tis-waptdev package on your development computer, PyScripter editor will launch automatically and open the package in development mode.

wapt-get make-host-template¶

Warning

This method is mainly for scripting, usually the host package are automatically created with the WAPT Console.

The wapt-get make-host-template <hostname> [[<package>,<package>,...] [directory]] command creates an empty WAPT host package from a template.

Use this arguments:

Argument	Definition	Default value
hostname	Name of host use for package name	If none is given, use the FQDN
package	List of packages needed on the host.	If it is not define, no packages are added as dependencies
directory	Directory to save the source files	If it is not define, it is `C:\waptdev`

The command wapt-get make-host-template host01.mydomain.lan returns:

Using config file: C:\Users\Documentation\AppData\Local\waptconsole\waptconsole.ini
Template created. You can build the WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-package C:\waptdev\host01.mydomain.lan-wapt
You can build and upload the WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-upload C:\waptdev\host01.mydomain.lan-wapt

wapt-get make-group-template¶

Warning

This method is to be used only if you cannot use the console to create a package.

The wapt-get make-group-template <name of group> command creates an empty WAPT group package from a template.

The command wapt-get make-group-template accounting returns:

Template created. You can build the WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-package C:\waptdev\accounting-wapt
You can build and upload the WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-upload C:\waptdev\accounting-wapt

wapt-get build-package¶

The wapt-get build-package <path to the package> command builds a WAPT package and signs it with the private key of the Administrator.

Note

The path to the private key, the default prefix and the default development path MUST be properly set in the wapt-get.ini file.

The command wapt-get build-package c:waptdevtis-dropbox returns:

Using config file: C:\Users\documentation\AppData\Local\waptconsole\waptconsole.ini
Building packages 1 packages
Personal certificate is documentation
Please type the password to decrypt the private key C:\Users\documentation\private\documentation.pem
Password:
Private key is <SSLPrivateKey 'C:\\Users\\documentation\\private\\documentation.pem'>
Personal certificate is SSLCertificate cn=documentation
Private key is <SSLPrivateKey 'C:\\Users\\documentation\\private\\documentation.pem'>
Building  c:\waptdev\tis-dropbox
Signing c:\waptdev\tis-dropbox with key <SSLPrivateKey 'C:\\Users\\documentation\\private\\documentation.pem'> and certificate documentation (C:\Users\documentation\private\documentation.crt)
Package c:\waptdev\tis-dropbox signed : signature : BN7j6lwloY...Iu9QVulA=
...done building. Package filename c:\waptdev\tis-dropbox_104.4.175-7_windows_0f4137ed1502b5045d6083aa258b5c42_5.1_PROD.wapt
1 packages successfully built
0 packages failed

You can upload to repository with
  C:\Program Files (x86)\wapt\wapt-get.exe upload-package "c:\waptdev\tis-dropbox_104.4.175-7_windows_0f4137ed1502b5045d6083aa258b5c42_5.1_PROD.wapt"

Warning

The directory name doens’t define the package name and prefix, it’s defined by the control file.

wapt-get sign-package¶

The wapt-get sign-package <path to the package> command signs a package with the private key of the Administrator.

Attention

sign-package does not rename the WAPT package with the chosen prefix of the Organization.

The command wapt-get sign-package C:\waptdev\smp-7zip_16.4.0.0-1_all.wapt returns:

Using config file: C:\Users\documentation\AppData\Local\waptconsole\waptconsole.ini
Signing packages c:\waptdev\tis-dropbox
Personal certificate is SSLCertificate cn=documentation
Please type the password to decrypt the private key C:\Users\documentation\private\documentation.pem
Password:
Private key is <SSLPrivateKey 'C:\\Users\\documentation\\private\\documentation.pem'>
Signing c:\waptdev\tis-dropbox
  OK: Package c:\waptdev\tis-dropbox signed : signature : b'nJYfYswDWi'...b'v790D7uA='

wapt-get build-upload¶

The wapt-get build-upload <path to the package> command builds and uploads a WAPT package onto the main WAPT repository.

Hint

By passing the -i argument to build-upload, the WAPT packaging version number is incremented before upload, so to avoid having to modify manually the control file.

The command wapt-get -i build-upload C:\waptdev\tis-tightvnc-wapt returns:

Using config file: C:\Users\documentation\AppData\Local\waptconsole\waptconsole.ini
Building packages 1 packages
Personal certificate is documentation
Please type the password to decrypt the private key C:\Users\documentation\private\documentation.pem
Password:
Private key is <SSLPrivateKey 'C:\\Users\\documentation\\private\\documentation.pem'>
Personal certificate is SSLCertificate cn=documentation
Private key is <SSLPrivateKey 'C:\\Users\\documentation\\private\\documentation.pem'>
Building  c:\waptdev\tis-dropbox
Signing c:\waptdev\tis-dropbox with key <SSLPrivateKey 'C:\\Users\\documentation\\private\\documentation.pem'> and certificate documentation (C:\Users\documentation\private\documentation.crt)
Package c:\waptdev\tis-dropbox signed : signature : s9FOLFQvYw...c9T3Hv1A=
...done building. Package filename c:\waptdev\tis-dropbox_104.4.175-7_windows_0f4137ed1502b5045d6083aa258b5c42_5.1_PROD.wapt
1 packages successfully built
0 packages failed
Building and uploading packages to https://srvwapt.mydomain.lan
Please get login for https://srvwapt.mydomain.lan/api/v3/upload_xxx:admin
Password:
c:\waptdev\tis-dropbox_104.4.175-7_windows_0f4137ed1502b5045d6083aa258b5c42_5.1_PROD.wapt[================================] 126459984/126459984 - 00:00:40
Package uploaded successfully: 1 Packages uploaded, 0 errors

wapt-get duplicate¶

The wapt-get duplicate <package source> <package new_duplicate> command duplicates a package downloaded from the repository and opens it as a PyScripter project.

Warning

Don’t use this command for duplicating a host package.

Use this arguments :

Argument	Definition	Required
directory or package	Directory path of package or compiled package in `.wapt`
new-package-name	Name of the new package
new-version	Change the package version in the `control` file. If it’s not defined, the same version is duplicated.
target directory	Path to the target directory of the duplicated package. If it’s not defined, use the same as the source package.

The command wapt-get duplicate tis-firefox tis-firefox-custom returns:

Package duplicated. You can build the new WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-package C:\waptdev\tis-firefox-custom-wapt
You can build and upload the new WAPT package by launching
  C:\Program Files (x86)\wapt\wapt-get.exe build-upload C:\waptdev\tis-firefox-custom-wapt

Hint

If you have previously installed tis-waptdev package on your development computer, PyScripter editor will launch automatically and open the package in development mode.

wapt-get edit¶

Warning

This method is to be used only if you cannot use the console to create a package.

The wapt-get edit <package name> command downloads and edits a WAPT package from the server repository.

The command takes on argument. That argument is the name package or a list of package names with the repository prefix.

The command wapt-get edit tis-firefox returns:

Using config file: C:\Users\documentation\AppData\Local\waptconsole\waptconsole.ini
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 1629411 / 54313787 (3%) (2686 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 8147055 / 54313787 (15%) (5679 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 15207836 / 54313787 (28%) (7367 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 19552932 / 54313787 (36%) (7249 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 24984302 / 54313787 (46%) (7471 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 29329398 / 54313787 (54%) (7143 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 33674494 / 54313787 (62%) (6951 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 40735275 / 54313787 (75%) (7534 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 45623508 / 54313787 (84%) (7326 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 53227426 / 54313787 (98%) (7603 KB/s)
https://srvwapt.mydomain.lan/wapt/tis-firefox_94.0.1-106_x64_windows_0f4137ed1502b5045d6083aa258b5c42_6.1_PROD_en_f5335369ad5805e8dbc1f8ae99b2258e.wapt : 54313787 / 54313787 (100%) (7663 KB/s)
Package edited. You can build and upload the new WAPT package by launching

Hint

If you have previously installed tis-waptdev package on your development computer, PyScripter editor will launch automatically and open the package in development mode.

wapt-get edit-host¶

Warning

This method is to be used only if you cannot use the console to create a package.

The wapt-get edit-host <host FQDN> command edits a WAPT host package.

The command wapt-get edit-host RND-0279A1F4-BBBE-43AE-A591-F82652E0104B returns:

Using config file: C:\Users\documentation\AppData\Local\waptconsole\waptconsole.ini
Package edited. You can build and upload the new WAPT package by launching
C:\Program Files (x86)\wapt\wapt-get.exe -i build-upload c:\waptdev\RND-0279A1F4-BBBE-43AE-A591-F82652E0104B_0-wapt

Hint

If you have previously installed tis-waptdev package on your development computer, PyScripter editor will launch automatically and open the package in development mode.

wapt-get update-package-sources¶

The wapt-get update-package-sources <path to the package> command update run the update-package function in setup.py file.

The command wapt-get update-package-sources tis-firefox returns:

Using config file: C:\Users\documentation\AppData\Local\waptconsole\waptconsole.ini
Latis Mozilla Firefox version is: 95.0.2
Download URL is: https://download-installer.cdn.mozilla.net/pub/firefox/releases/95.0.2/win64/en-US/Firefox%20Setup%2095.0.2.exe
Downloading: Firefox_Setup_95.0.2.exe
Firefox_Setup_95.0.2.exe[================================] 54810424/54810424 - 00:00:07
Software version updated (from: 94.0.1 to: 95.0.2)
Packages updated :
c:\waptdev\tis-firefox_0-wapt

Hint

If you have previously installed tis-waptdev package on your development computer, PyScripter editor will launch automatically and open the package in development mode.

Using the command-lines for WaptWUA management ¶

wapt-get waptwua-scan¶

The wapt-get waptwua-scan scan status of Windows against current rules and send result to server.

The command wapt-get waptwua-scan returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Ensure wuauserv Auto Update option is disabled
Scanning with windows updates rules:
{
"direct_download": false,
"default_allow": false,
"filter": "Type='Software' or Type='Driver'",
"download_scheduling": "7d",
"install_scheduling": null,
"install_delay": null,
"postboot_delay": "10m"
}
Downloading wsusscn2.cab file from https://srvwapt.mydomain.lan/waptwua/wsusscn2.cab
wsusscn2.cab[================================] 1024297844/1024297844 - 00:02:04
Windows updates rules have been changed
Looking for updates with filter: Type='Software' or Type='Driver'
  Connecting to local update searcher using offline wsusscn2 file...
  Offline Update searcher ready...
Waiting for WUA search to complete
Done searching
WUA Search completed !
Updates scan done.
Writing status in local wapt DB
Status: OK
(0, 0, 0)
None
re-enabling wuauserv previous state: 0

wapt-get waptwua-download¶

The wapt-get waptwua-download command scan status of Windows against current rules, download missing kb and send result to server.

The command wapt-get waptwua-download returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Ensure wuauserv Auto Update option is disabled
Downloading wsusscn2.cab file from https://srvwapt.mydomain.lan/waptwua/wsusscn2.cab
wsusscn2.cab[================================] 1024297844/1024297844 - 00:00:26
Start of install for all pending Windows updates
Scanning with params:
{
"direct_download": false,
"default_allow": false,
"filter": "Type='Software' or Type='Driver'",
"download_scheduling": "7d",
"install_scheduling": null,
"install_delay": null,
"postboot_delay": "10m"
}
Scanning with windows updates rules:
{
"direct_download": false,
"default_allow": false,
"filter": "Type='Software' or Type='Driver'",
"download_scheduling": null,
"install_scheduling": null,
"install_delay": null,
"postboot_delay": "10m"
}
Bypassing scan, no change since last successful scan
Writing status in local wapt DB
Status: OK
{'downloaded': [], 'missing': []}
None
re-enabling wuauserv previous state: 0

wapt-get waptwua-install¶

The wapt-get waptwua-install install pending updates.

The command wapt-get waptwua-install returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Ensure wuauserv Auto Update option is disabled
Downloading wsusscn2.cab file from https://srvwapt.mydomain.lan/waptwua/wsusscn2.cab
wsusscn2.cab[================================] 1024297844/1024297844 - 00:00:26
Start of install for all pending Windows updates
Scanning with params:
{
"direct_download": false,
"default_allow": false,
"filter": "Type='Software' or Type='Driver'",
"download_scheduling": "7d",
"install_scheduling": null,
"install_delay": null,
"postboot_delay": "10m"
}
Scanning with windows updates rules:
{
"allowed_products": null,
"allowed_classifications": null,
"allowed_severities": null,
"allowed_updates": null,
"forbidden_updates": null,
"allowed_kbs": null,
"forbidden_kbs": null,
"default_allow": false
}
Looking for updates with filter: Type='Software' or Type='Driver'
  Connecting to local update searcher using offline wsusscn2 file...
  Offline Update searcher ready...
Waiting for WUA search to complete
Done searching
WUA Search completed !
Updates scan done.
Installed 07609d43-d518-4e77-856e-d1b316d1b8a8 : MSXML 6.0 RTM Security Update  (925673)
Installed bb49cc19-8847-4986-aa93-5e905421e55a : Security Update for Microsoft Visual C++ 2005 Service Pack 1 Redistributable Package (KB2538242)
Installed 729a0dcb-df9e-4d02-b603-ed1aee074428 : Security Update for Microsoft Visual C++ 2008 Service Pack 1 Redistributable Package (KB2538243)
Installed 719584bc-2208-4bc9-a650-d3d6347eb32e : Security Update for Microsoft Visual C++ 2010 Service Pack 1 Redistributable Package (KB2565063)
Installed a8761130-35b6-41ce-8b67-2d35bb2d0846 : 2021-02 Cumulative Update for .NET Framework 3.5 and 4.8 for Windows 10, version 20H2 for x64 (KB4601050)
Installed 30f75e5d-2c46-42be-aef6-97ae730452be : 2021-07 Cumulative Update for Windows 10 Version 20H2 for x64-based Systems (KB5004945)
Installed 6e88be6e-d470-4e7e-9f36-01479049aadb : 2021-08 Servicing Stack Update for Windows 10 Version 20H2 for x64-based Systems (KB5005260)
Installed a15155a4-1299-41ff-9a39-28a33ce7cadd : 2021-12 .NET Core 3.1.22 Security Update for x64 Client (KB5009193)
Installed 38db0ad6-27f8-4bf9-ab2a-cffc4d7bc390 : Windows Malicious Software Removal Tool x64 - v5.96 (KB890830)
Scanning with windows updates rules:
{
"direct_download": false,
"default_allow": false,
"filter": "Type='Software' or Type='Driver'",
"download_scheduling": "7d",
"install_scheduling": null,
"install_delay": null,
"postboot_delay": "10m"
}
Windows updates rules have been changed
Writing status in local wapt DB
Status: OK
[]
None
re-enabling wuauserv previous state: 2

wapt-get waptwua-status¶

The wapt-get waptwua-status return the last update status.

The command wapt-get waptwua-status returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
{'enabled': None,
'last_error': 'OperationalError: cannot rollback - no transaction is active',
'last_install_batch': [],
'last_install_date': None,
'last_install_reboot_required': None,
'last_install_result': None,
'last_scan_date': '2022-01-07T10:20:50.213644',
'last_scan_duration': 1490.500022649765,
'missing_downloads': [],
'rules_packages': [],
'status': 'SCANNING',
'wsusscn2cab_date': '2021-12-14T04:06:46'}
None

wapt-get restart-waptservice¶

The wapt-get restart-waptservice restart waptservice on Windows, Linux and MacOS.

Using the command-lines for interaction with users ¶

wapt-get propose-upgrade¶

The wapt-get propose-upgrade command launch an upgrade proposal by launching waptexit in open sessions.

The command wapt-get propose-upgrade returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
{'result': 1, 'summary': 'waptexit launched for 1 sessions'}

Using the command-lines for initial setup¶

wapt-get create-keycert¶

The wapt-get create-keycert [<options>] command create a RSA key pair and X509 certificate.

List of options avaible¶
Option	Description	Default Value
`--CommonName`	Display name of the certificate	/
`--CommonName64`	Display name of the certificate, encoded in base64 (if accents, spaces etc..)	/
`--CodeSigning`	If the certificate / key pair will be allowed to sign software packages	`0`
`--CA`	If this certificate / key pair can be used to sign other certificates (main or intermediate Certificate Authority)	`0`
`--ClientAuth`	Corresponds to a property (use) of the certificate	`1` for a non-CA certificate
`--PrivateKeyPassword`	Password for unlocking the key if `--NoPrivateKeyPassword` is not used	Randomly generated password
`--PrivateKeyPassword64` if `--PrivateKeyPassword` is not used	Password for unlocking the key, encoded in base64 (if accents, spaces etc..)	Randomly generated password
`--NoPrivateKeyPassword`	If private key is not encrypted if `--PrivateKeyPassword` or `--PrivateKeyPassword64` are not used	Empty
`-F`	Force overwrite existing certificate	/
`--Country`	Name of the certificate holder’s country to register in the certificate.	/
`--Locality`	Name of the certificate holder’s city to register in the certificate.	/
`--Organization`	Name of the certificate holder’s Organization to register in the certificate.	/
`--OrgUnit`	Name of the certificate holder’s Organization Unit (Service) to register in the certificate.	/
`--Email`	Email address of the certificate holder to register in the certificate	/
`--CAKeyFilename`	Path to the key (`.pem`) of an Certificate Authority	Parameter `default_ca_key_path` in `waptconsole.ini`
`--CACertFilename`	Path to the certicate (`.crt`) of an Certificate Authority	Parameter `default_ca_cert_path` in `waptconsole.ini`
`--CAKeyPassword`	Password for unlocking the key of Certificate Authority	/
`-NoCAKeyPassword`	If Certificate Authority key is not encrypted	/
`--BaseDir`	Folder where the private key and the public certificate will be stored.	Directory `personal_certificate_path` in `waptconsole.ini`
`-EnrollNewCert`	Copy the certificate to `waptssl`	/
`-SetAsDefaultPersonalCert`	The certificate path is assigned to `personal_certificate_path` in `waptconsole.ini`	/

The command wapt-get create-keycert returns:

Using config file C:\Users\Administrator\AppData\Local\waptconsole\waptconsole.ini
BaseDir: C:\private\
Common name of certificate to create: documentation
Private Key Filename: C:\private\documentation.pem
Certificate Filename: C:\private\documentation.crt
New private key password: QR.-DVp6MPGW

Warning

If default_ca_key_path and default_ca_cert_path are defined in C:UsersAdministratorAppDataLocalwaptconsolewaptconsole.ini you must place CA certificate in the same location.

Else this error appears :

wapt-get create-keycert
Using config file C:\Users\tisadmin\AppData\Local\waptconsole\waptconsole.ini
BaseDir: C:\Users\tisadmin\private\
Common name of certificate to create: CRT
Exception at 00483595: Exception:
CA Certificate C:\Program Files (x86)\wapt\ssl does not exist.

wapt-get build-waptagent¶

The wapt-get build-waptagent [</ConfigFilename>] compile and upload a waptagent.exe and waptupgrade.exe package using /ConfigFilename parameter to ini file. For ini file use the wapt-get.ini syntax.

Note

By default, use waptconsole.ini configuration.

The command wapt-get build-waptagent returns:

Building customized waptagent.exe installer
......................................................................................
Built C:\Users\documentation\AppData\Local\Temp\wapt20220107T12203700000.tmp\waptupgrade\waptagent.exe
Private key Password for C:\Users\documentation\private\documentation.crt : ********
Building waptupgrade package
Waptserver https://srvwapt.mydomain.lan Admin User () :admin
Waptserver Password: ************
Uploading customized waptagent.exe installer
Uploading C:\Users\documentation\AppData\Local\Temp\wapt20220107T12203700000.tmp\waptupgrade\waptagent.exe to waptserver https://srvwapt.mydomain.lan
OK
Uploading C:\Users\documentation\AppData\Local\Temp\wapt20220107T12203700000.tmp\tis-waptupgrade_2.1.2.10605-0_all_PROD_all.wapt to waptserver https://srvwapt.mydomain.lan
OK : 1 Packages uploaded, 0 errors. Errors:

Using the command-lines for repository management¶

wapt-get upload-package¶

The wapt-get upload-package <path to the package> command uploads a package onto the main WAPT repository.

The command wapt-get upload-package C:\waptdev\tis-tightvnc.wapt returns:

Using config file: C:\Users\documentation\AppData\Local\waptconsole\waptconsole.ini
Uploading packages to https://srvwapt.mydomain.lan
Please get login for https://srvwapt.mydomain.lan/api/v3/upload_xxx:admin
Password:
c:\waptdev\tis-tightvnc.wapt[================================] 54316019/54316019 - 00:00:17
OK : 1 Packages uploaded, 0 errors

wapt-get scan-packages¶

Hint

This command it’s only for the Windows repositories

The wapt-get scan-packages <directory> command rebuild a Packages file for http package repository.

The command wapt-get scan-packages C:waptwaptserverrepositorywapt returns:

Using config file: C:\Program Files (x86)\wapt\wapt-get.ini
Packages filename: C:\wapt\waptserver\repository\wapt
Processed packages:
  C:\wapt\waptserver\repository\wapt\tis-firefox.wapt
  C:\wapt\waptserver\repository\wapt\tis-tightvnc.wapt
  C:\wapt\waptserver\repository\wapt\tis-7zip.wapt
Skipped packages:

wapt-scanpackages¶

Hint

This command it’s only for the Linux repositories

The wapt-scanpackages <directory> command rebuild a Packages file for http package repository.

The command wapt-scanpackages /var/www/wapt/ returns nothing

Re-signing packages on the server using a command line¶

Hint

This commands are only avaible on Linux server

Danger

Before using this method, ensure that your WAPT Server is safe and not under the control of an unauthorized third party entity.

Copy your .crt and .pem to /tmp/ on the WAPT Server using Winscp or an equivalent tool.
It is then possible to re-sign all the packages at once on the WAPT Server with the following commands.

wapt-signpackages -d /var/www/wapt-host -c /tmp/wapt_pub_key.crt -k /tmp/wapt_priv_key.pem -s
wapt-signpackages -d /var/www/wapt -c /tmp/wapt_pub_key.crt -k /tmp/wapt_priv_key.pem -s
wapt-scanpackages /var/www/wapt/

Warning

If the error Access violation appear it’s beacause the package is too big.

Edit the package and see this procedure.

Hint

Use this method if re-signing from the WAPT console method does not complete successfully.

Attention

Remove your .crt and .pem from /tmp/ on the WAPT Server.

Using the command-lines with options¶

Option	Definition
`--version`	Show program’s version number and exit
`-h` \| `--help`	Show help message and exit
`-c CONFIG` \| `--config=CONFIG`	Path to another file like `wapt-get.ini` or `waptconsole.ini`. Replaces the file normally used by the command line.
`-l LOGLEVEL` \| `--loglevel=LOGLEVEL`	Level of log files following this list : ‘debug’, ‘warning’, ‘info’, ‘error’, ‘critical’ (default: warning)
`-D` \| `--direct`	Don’t use http service for update/upgrade
`-S` \| `--service`	Request a Waptservice user
`-u` \| `--update-packages`	Run `wapt-get update` before the command-line
`-f` \| `--force`	Force the command-line
`-p PARAMS` \| `--params=PARAMS`	Setup params as a JSon Object
`-r WAPT_URL` \| `-repo WAPT_URL` \| `--repository=WAPT_URL`	Override URL of main wapt repository from `wapt-get.ini` or `waptconsole.ini` file
`-y` \| `--hide`	Hide the console during the execution of the command-line
`-F FILTER_ON_HOST_CAP` \| `--use-host-caps=FILTER_ON_HOST_CAP`	Filter the packages based on the current host capabilities (0/1)
`-i` \| `--inc-release`	Increase release number when building package
`-a UPDATE_SERVER_STATUS` \| `--update-server-status=UPDATE_SERVER_STATUS`	Send updated status of host (soft, packages, etc..) to server after action. `UPDATE_SERVER_STATUS` takes a value of 0 or 1)
`keep-signature-date`	Keep the current package signature date, and file changetime. Only for `wapt-get sign-package`
`-s SECTION_FILTER` \| `--sections=SECTION_FILTER`	Add a filter section to `wapt-get search`. Section it’s type of package
`-o REDIRECT_OUTPUT` \| `--output=REDIRECT_OUTPUT`	Redirect the outputs to a given `.ini` file
`-j` \| `-json`	Switch to json output for scripts purpose
`-e ENCODING` \| `--encoding=ENCODING`	Change chararacter encoding for the output
`-x EXCLUDES` \| `--excludes=EXCLUDES`	Comma separated list of files or directories to exclude for build-package
`-k PERSONAL_CERTIFICATE_PATH` \| `--certificate=PERSONAL_CERTIFICATE_PATH`	Path to the PEM X509 certificate to sign packages. Package are unsigned if not provided
`-w PRIVATE_KEY_PASSWD` \| `--private-key-passwd=PRIVATE_KEY_PASSWD`	Path to the file containing the private key password
`-U USER` \| `--user=USER`	To define an interactive user
`-g USERGROUPS` \| `--usergroups=USERGROUPS`	Groups of the final user as a JSon array for checking install permission
`-t MAX_TTL` \| `--maxttl=MAX_TTL`	ax run time in minutes of wapt-get process before being killed by subsequent wapt-get (default: 60 minutes)
`-L LANGUAGE` \| `--language=LANGUAGE`	Override language for install, example : fr (default : en)
`-m MD` \| `--message-digest=MD`	Message digest type for `wapt-get sign-package`
`-n` \| `--newest-only`	Return only the newest version of packages when use `wapt-get search`
`--locales=LOCALES`	Override packages locales filter for `wapt-get search`
`--maturity=MATURITY`	Set/change package maturity when building package
`--pin-server-cert`	When registering, pin the server certificate.
`--wapt-server-url=SET_WAPTSERVER_URL`	When the setting `wapt_server` is not defined, defined in `wapt-get.ini`.
`--wapt-repo-url=SET_WAPTREPO_URL`	When the setting `repo_url` is not defined, defined in `wapt-get.ini`.
`--wapt-server-user=WAPT_SERVER_USER`	Defines the user to upload packages to the server
`--wapt-server-passwd=WAPT_SERVER_PASSWD`	Defines the password to upload packages to the server
`--log-to-windows-events`	Log steps to the Windows event log
`--use-gui`	Force use of GUI Helper even if not in dev mode
`--no-ide`	Don’t launch ide when editing a package
