Frequent problems¶

Resetting the WAPT Linux Server password¶

It sometimes happens to setup a WAPT Server and then forget its password.

To reset the WAPT console SuperAdmin password you have to relaunch the post-configuration process on the WAPT Server.

connect to the server with SSH;
connect with user root (or use sudo);
launch post-configuration script .

I lost my WAPT private key¶

WAPT’s security and its correct functioning rely on sets of private keys and public certificates.

Losing a private key thus requires to generate a new key and its associated certificates, and then to deploy the new keys and the new certificates on the Organization’s computers.

Therefore, losing a key bears some consequences, the process to recover from a lost key is not trivial, although it is relatively simple.

Generating or renewing a private key¶

The procedure is:

Generate a new private key/ public certificate. You will then keep the private key (file .pem) in a safe location;
Deploy, manually, using a GPO or using an Ansible role (not documented), the new certificate .crt on your clients in the ssl folder.
- C:\Program Files (x86)\ssl on Windows;
- /opt/wapt/ssl on Linux and MacOS.

Re-signing packages in the repositories¶

WAPT packages hosted on the repositories were signed using the former private key, so you must re-sign every package of the repository using the new key.

My private key has been stolen¶

Attention

WAPT security relies on protecting your private keys.

WAPT does not handle key revocation yet using a CRL.

The solution consists in deleting every .crt certificate associated to the stolen private key, located in the ssl folder :

C:\Program Files (x86)\ssl on Windows;
/opt/wapt/ssl on Linux and MacOS.

That operation can be done using a GPO, manually, with a WAPT package or with an Ansible role (not documented).

My BIOS UUID bugs¶

Some problems happen sometimes with some BIOSes. WAPT uses the UUID of the machine as the host identifier.
The UUID is supposed to be unique. Unfortunately, for some OEMs and some manufacturing batches, BIOS UUID are identical.
The machine will register in the WAPT console but it will replace an existing device, considering that the machine has only changed its name.

Solving the BIOS UUID issue¶

WAPT allows to generate a random UUID to replace the one retrieved from the BIOS.

wapt-get generate-uuid

It’s also possible not to use UUID but FQDN. On wapt-get.ini define in [global] section:

use_fqdn_as_uuid = True

WAPTdeploy does not work¶

Symptoms¶

The waptdeploy utility does not succeed in installing the WAPT agent.

Launching WAPTdeploy locally¶

Launching waptdeploy locally can be a good method for showing errors explicitly.

Attention

Do not forget to start the command prompt as a Local Administrator.

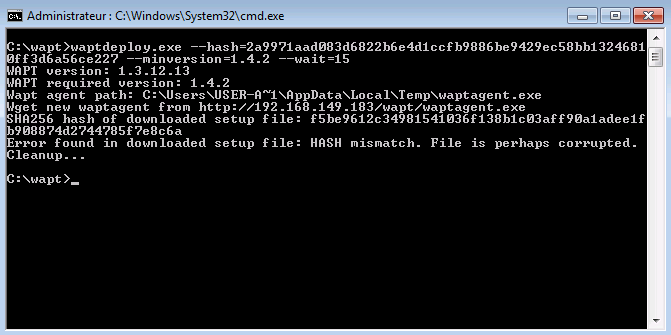

Example of command to launch:

C:\Program Files (x86)\wapt\waptdeploy.exe --hash=2a9971aad083d6822b6e4d1ccfb9886be9429ec58bb13246810ff3d6a56ce887 --minversion=2.1.0.10550 --wait=15 --waptsetupurl=https://srvwapt.mydomain.lan/wapt/waptagent.exe

In our case the hash is not correct.

WAPTdeploy works manually but does not work with GPO¶

Check that port 8088 is listening correctly on host:

gpresult /h gpo.html & gpo.html

To force the application of the GPO:

gpupdate /force

If waptdeploy does not show up you will have to double check the GPO settings:

You may be using an old waptdeploy version, then download the latest version of waptdeploy from your WAPT server web page.
Thanks to Emmanuel EUGENE from French public research institution INSERM who submitted this possible cause for waptdeploy not functioning properly, if you are replicating domain controllers, ensure that the GPOs are correctly synchronized between your DCs and that ACLs are identically applied on the SysVols.

Windows does not wait for the network to be up on startup¶

By default Windows does not wait for the network to be up at computer startup.

This can cause problems during waptdeploy execution because waptdeploy requires network connectivity to retrieve the new WAPT agent.

2 solutions :

We recommend adding waptdeploy.exe to the startup and shutdown scripts on the GPO.

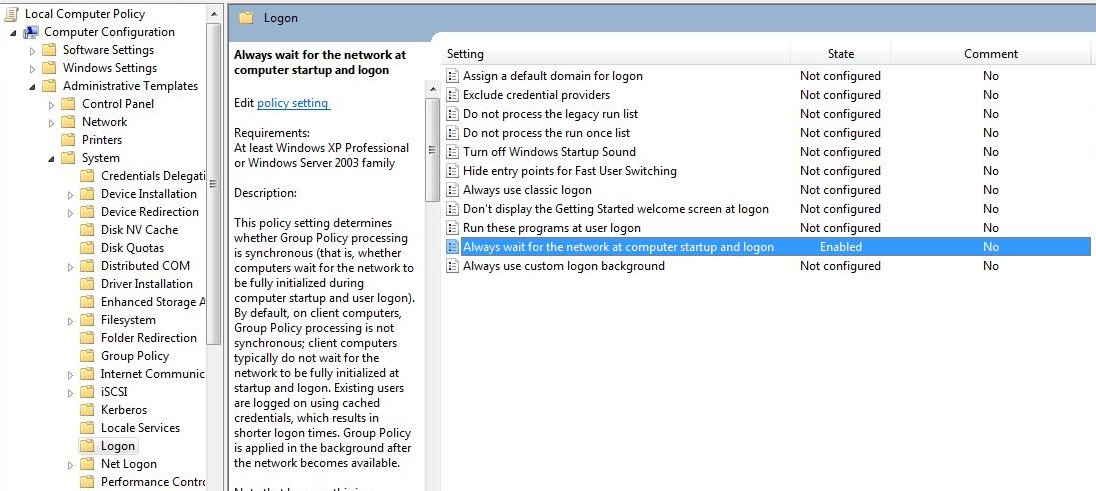

You can enable the GPO: Always wait for the network at computer startup and logon:

Computer Configuration ‣ Administrative Templates ‣ System ‣ Logon ‣ Always wait for the network at computer startup and logon

WAPT Exit will not launch¶

Despite the script actually being registered in the local security shutdown strategy, the waptexit script does not launch at computer shutdown.

Solution: Hybrid shutdown¶

Windows 10 hybrid shutdown must be disabled because it causes many problems and strange behaviors, disabling Hybrid Shutdown will restore exit script execution at shutdown.

Hybrid shutdown can be disabled by setting a value in wapt-get.ini file of the WAPT agent.

It’s possible to set this value when creating WAPT Agent.

There is a WAPT package to solve the Hybrid Shutdown problem: tis-disable-hybrid-shutdown.

Windows Home edition¶

Local security policies are not available when using a Windows Home edition computer, so it is normal that the script will not launch. To circumvent the problem, use scheduled tasks.

The workaround consists in using a scheduled task that will launch C:\Program Files (x86)\wapt\wapt-get.exe with the argument upgrade.

Corrupted local GPO¶

It sometimes occurs that local security policies on the computer are corrupted.

One of the possible solutions is to :

Remove local security strategies by deleting the file C:\Windows\System32\GroupPolicy\gpt.ini;
Restart the computer;
Re-install the shutdown scheduled tasks by :

wapt-get add-upgrade-shutdown

If the problem occurs again, this may mean that another application also manipulates the local GPO.

WAPTExit halts after 15 minutes and does not finish the installing the packages¶

By default, Windows shutdown scripts are only allowed to run for 15 minutes.

If a script has not finished before that limit, it will be interrupted.

Solution: increase the installation timeout¶

To solve that problem, increase the pre_shutdown_timeout `` value and the ``max_gpo_script_wait value on wapt-get.ini

Define these values to change the default behavior.

max_gpo_script_wait=180
pre_shutdown_timeout=180

The WAPT package tis-wapt-conf-policy sets this configuration.

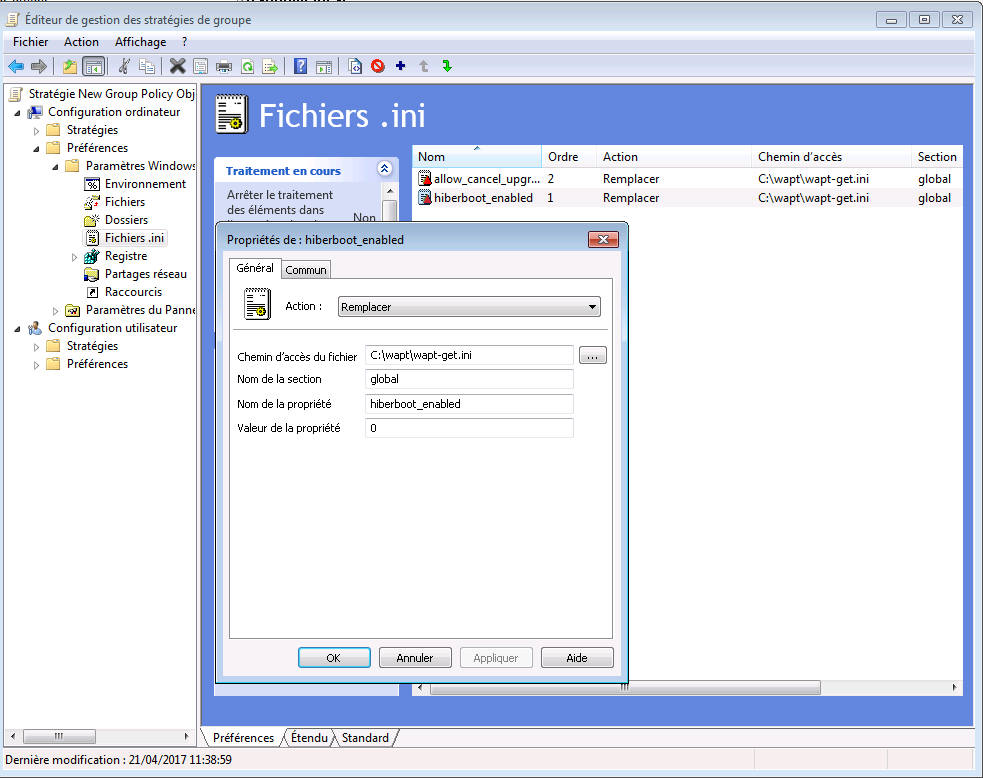

The other solution may be to use the GPO File.ini.

Error message when opening the WAPT console¶

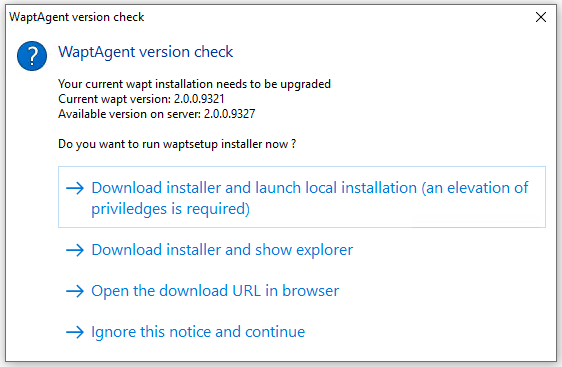

Version check¶

WAPT console version isn’t equal version to server version. Upgrade it is recommanded. Select you’r prefer method.

Connection refused¶

The WAPT console can not contact the WAPT Server on port 443.

Check whether the Nginx web service is running on the WAPT Server.

systemctl status nginx

If Nginx is not running, restart the Nginx service.

systemctl restart nginx

If Nginx still does not start, you’ll need to analyze journal logs in :
- /var/log/nginx/ on Linux
- C:\Program Files (x86)\wapt\waptserver\nginx\logs on Windows.

Service unavailable¶

It is possible that the waptserver service is stopped.

Check whether waptserver is running.

systemctl status waptserver

If the command returns an error, then start the waptserver.

systemctl start waptserver

Error connecting with SSL … verify failed¶

The WAPT console seems not to be able to verify the server’s HTTPS certificate.

Attention

Before doing anything, be sure that your are not facing a MITM attack!

Note

If you have just redone your WAPT Server and that you use a self-signed certificate, you can recover the old keys of your old WAPT Server in /opt/wapt/waptserver/apache/ssl.

Close your WAPT console.
Delete the folder %appdata%\..\Local\waptconsole.
Launch the command wapt-get enable-check-certificate.
Be sure that the previous command has gone well.
Restart the WAPT service with net stop waptservice && net start waptservice.
Restart the WAPT console.

In case you do not use the certificate pinning method, this tells you that the certificate sent by the server can not be verified with the python certifi bundle of certificates. Be sure to have the full chain of certificates on the WAPT Server.

Problems with registering a host with WAPT¶

If you do a wapt-get register and it returns as follows:

FATAL ERROR : ConnectionError: HTTPSConnectionPool(host='XXX.XXX.XXX.XXX', port=443): Max retries exceeded with url: /add_host

You need to check that the 443 port is correctly forwarded to the WAPT server and not blocked by a firewall.

Problems when enabling enable-check-certificate¶

Message “Certificate CN ### sent by server does not match URL host ###”¶

This means that the CN in the certificate sent by the WAPT Server does not match the value of the wapt_server attribute in wapt-get.ini.

Two solutions:

Check the value of wapt_server in your wapt-get.ini.

If the value is correct, this surely means that an error has happened during the generation of the self-signed certificate during server post-configuration (typing error, …).

You must then regenerate your self-signed certificates.

On the WAPT Server, delete the content of the /opt/wapt/waptserver/apache/ssl/ folder.

Then, relaunch the post-configuration script (the same as the one used during initial installation, with the same arguments and values).

Then, be sure that the value of FQDN for the WAPT Server is correct.

You may now retry enable-check-certificate.

Problems when creating a package¶

Problems with access rights and PyScripter¶

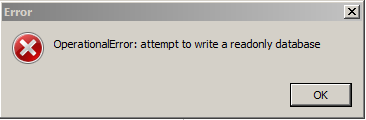

When trying to install a package from PyScripter, if the following message appears:

OperationnalError: attempt to write a read-only database

Solution¶

Open a session as Local Administrator and redo the desired action.

My WAPT package is too big and I can not upload it on the repository¶

When a package is too big, it is necessary to build it locally then upload it with WinSCP or an equivalent utility.

Solution¶

Build the package with PyScripter or manually build the package.

Hint

If the previous upload failed, you can find the package in C:\waptdev.

Download and install WinSCP
Using WinSCP, upload your package in repository location.
Once the upload has finished, you’ll need to recreate the Packages index file on your repository. Use following command an remplace repository by repository location.

wapt-scanpackages repository

Access violation error on packet re-signing¶

If the error Access violation appear it’s beacause the package is too big.

Edit the package and see this procedure.

WAPT package in error¶

Problem installing a package¶

Symptoms¶

I have a package that returns in error and the software is not installed on the computer when I physically go to check on the computer.

Explanation¶

An error has occurred during the execution of the setup.py.

You can read and analyze error messages returned in the console and try to understand and solve them.

The installation of the package will be retried at each upgrade cycle until the package does not return an error.

Solution¶

If WAPT returns an error code, research the error code on the Internet.

Example for a MSI: 1618: another installation in already running. Restarting the computer should solve the problem.

Note

MSI error codes are available by visiting this website.

Go to the computer and try to install the package with the WAPT command line utility. Then check that the software has installed.

Attention

Once the silent installation has finished, do nothing else.

The objective is to reproduce the behavior of the WAPT agent.

If the package installs silently in user context, this may mean that the software installer does not work in SYSTEM context.
If it is still not working, launch the installation manually. It is possible for an error to appear explicitly describing the problem (ex: missing dependency, etc).
It is possible that the installer does not support installing over an older version of the software, so you will have to explicitly remove older versions of the application before installing the new one.

Error “timed out after seconds with output ‘600.0’”¶

Symptoms¶

Some packages return the following error in the WAPT console:

"Erreur timed out after seconds with output '600.0'"

Explanation¶

By default, when installing a package run, install_msi_if_needed, WAPT will wait 600 seconds for the installer to finish its task.

if the installer has not finished in this delay, WAPT will stop the running installation.

Solution¶

If the software to be installed is known to be big (Microsoft Office, Solidworks, LibreOffice, Katia, Adobe Creative Suite), it is possible that the 600 second delay will be too short.

You will have to increase the timeout value, ex: timeout = 1200:

run('"setup.exe" /adminfile office2010noreboot.MSP',timeout=1200)

Error “has been installed but the uninstall key can not be found”¶

Symptoms¶

Some packages return the following error in the WAPT console:

XXX has been installed but the uninstall key can not be found.

Explanation¶

WAPT relies on Windows to install .msi binaries with install_msi_if_needed and .exe binaries with install_exe_if_needed.

By default, WAPT accepts return codes 0 (OK) and 3010 (computer restart required) and it verifies that the uninstall key is present.

Unfortunately, we can not fully trust these return codes, so WAPT does additional checks after completing the installation to make sure that all has gone well:

It checks the presence of the uninstall key on the computer.
It checks that the version number of the software is equal or greater than the version number in the control file.
If this is not the case, it infers that the software may not be present on the computer.

The function returns the package in error. The installation will be retried at every upgrade cycle until the package returns no error.

Solution¶

Attention

Before doing anything, it is advisable to go physically to the computer returning in error and to manually check whether the software has correctly installed. If the software has not installed correctly, refer to the section of this documentation on installing a package.

If the software has installed correctly, this may mean that the uninstall key or the software version in the package is not correct.
Retrieve the correct uninstall key and make changes to the WAPT package accordingly.
If the error happens when using the install_msi_if_needed function, this means that the MSI installer is badly packaged and that it is returning an incorrect uninstall key.

Error “has been installed and the uninstall key found but version is not good”¶

Symptoms¶

Some packages return the following error in the WAPT console:

has been installed and the *uninstall key* found but version is not good

Explanation¶

When using install_msi_if_needed or install_exe_if_needed functions, additional checks are performed to make sure that all has gone well.

Solution¶

Attention

Before doing anything, it is advisable to go physically to the computer returning in error and to manually check whether the software has correctly installed. If the software has not installed correctly, refer to the section of this documentation on installing a package.

Solution: with `install_msi_if_needed`¶

The informations being extracted from the MSI installer, this means that the MSI file does not return correct values or that the uninstall key is incorrect.

You can check using the Windows Command Line utility:

wapt-get list-registry

If the returned key is not that which has been entered in the install section of the setup.py, it is not possible to use install_msi_if_needed.

You must review the install section of your setup.py, use the run() function and manually manage exceptions.

Solution: with `install_exe_if_needed`¶

This probably means that the version number entered in the install_exe_if_needed function is not correct. Make corrections to the WAPT package accordingly.

Note

If the min_version argument has not been entered, WAPT will try to retrieve the version automatically from the exe installer.

You can check the uninstall key and version number using the command:

wapt-get list-registry

If no version is provided with the wapt-get list-registry command, this means that the software installer does not provide an uninstall key.

Two solutions:

Use the argument get_version to provide the path to another uninstallkey.

def install():

   def versnaps2(key):
       return key['name'].replace('NAPS2 ','')

   install_exe_if_needed('naps2-5.3.3-setup.exe',silentflags='/VERYSILENT',key='NAPS2 (Not Another PDF Scanner 2)_is1',get_version=versnaps2)

Providing an empty value for min_version tells WAPT not to check for versions.

min_version=' '

Attention

With this method, versions are no longer checked during updates!

Frequent problems caused by Anti-Virus software¶

Some Anti-Virus software falsely raise errors when checking some internal components of WAPT.

Among the components is nssm.exe used by WAPT as a service manager for starting, stopping and restarting the WAPT service.

Below is a list of useful exceptions to declare in your central AV interface to solve false positives related to WAPT:

"C:\Program Files (x86)\wapt\waptservice\win32\nssm.exe"
"C:\Program Files (x86)\wapt\waptservice\win64\nssm.exe"
"C:\Program Files (x86)\wapt\waptagent.exe"
"C:\Program Files (x86)\wapt\waptconsole.exe"
"C:\Program Files (x86)\wapt\waptexit.exe"
"C:\wapt\waptservice\win32\nssm.exe"
"C:\wapt\waptservice\win64\nssm.exe"
"C:\wapt\waptagent.exe"
"C:\wapt\waptconsole.exe"
"C:\wapt\waptexit.exe"
"C:\Windows\Temp\waptdeploy.exe"
"C:\Windows\Temp\waptagent.exe"
"C:\Windows\Temp\is-?????.tmp\waptagent.tmp"

I have an issue with my proxy - THttpClientSocket.SockRecv(1) read = 0¶

If you have this issue :

The error comes from a timeout option in your waptconsole.ini.

Indeed, since WAPT 2.1 version, timeout is defined in milisecond and not second like before.

You’ll have to remove your timeout option in your waptconsole.ini located here : %localappdata%\waptconsole.

Common mistakes¶

How to move my repository to another partition¶

For any reason, you may need move the repository to another partition.

Your repository contains 3 folders which can be quite large:

wapt;

wapt-host;

waptwua;

Warning

We will not use the same method for Linux and Windows.

Linux¶

On Linux, create a mount point on fstab.

For this example, the second partition is named part2.

part2 is an ext4 formated partition.

Debian / Ubuntu¶

Create a temporary folder.

mkdir /mnt/tmp

Create a temporary mount point.

mount /dev/part2 /mnt/tmp

Move the folders.

mv /var/www /mnt/tmp

Unmont the partition.

umount /dev/part2

Edit the fstab file.

vi /etc/fstab

Add the following line to the fstab file.

# <file system> <mount point> <type>  <options> <dump>  <pass>
/dev/part2      /var/www      ext4    defaults  0       0

Mount the partition.

mount -a

Hint

If there is no error, the partition is mounted.

You can check by running.

df -h

#Result
Filesystem     1K-blocks     Used Available Use% Mounted on
dev/part2       15G          944M       14G   7% /var/www

Remove the temporary folder.

rm -rf mnt/tmp

Centos / RedHat¶

Create a temporary folder for copying the folders.

mkdir /mnt/tmp

Create a temporary mount point.

mount /dev/part2 /mnt/tmp

Move the folders.

mv /var/www/html /mnt/tmp

Unmont the partition.

umount /dev/part2

Edit the fstab file.

vi /etc/fstab

Add the following line to the fstab file.

# <file system> <mount point> <type>  <options> <dump>  <pass>
/dev/part2      /var/www/html      ext4    defaults  0       0

Mount the partition.

mount -a

Hint

If there is no error, the partition is mounted.

You can check by running.

df -h

#Result
Filesystem     1K-blocks     Used Available Use% Mounted on
dev/part2       15G          944M       14G   7% /var/www

Remove the temporary folder.

rm -rf mnt/tmp

Windows¶

On Windows, the best method is to backup and restore the server on the new partition.

Note

It is possible to install the server on another partition than C:.

Using a network drive to store and deliver WAPT packages¶

The standard way WAPT works is with a secure web server delivering WAPT packages to the WAPT Clients.

Tranquil IT advises against using a network drive for delivering WAPT packages for several reasons:

A web server is extremely easy to setup, secure, maintain, backup and monitor.
To work correctly, a WAPT package needs to be self-contained. Indeed, we do not know if the network will be available at the time of the installation launch (for example if we have a waptexit that starts when the workstation is shutting down on a network with 802.1x user authentication, there will no longer be a network available at the time of installation). The self-contained nature of WAPT makes it more deterministic than other deployment solutions.
Network congestion may result from downloading large packages on large fleets of devices because you have less control over bandwidth rates or you may not be able to finish a partial download.
This method breaks or at least weakens the security framework of WAPT.
This method does not allow you to expose your repositories to Internet for your traveling personnel.

Attention

Even though WAPT can work independently of the transport mode, Tranquil IT will not officially support using a network drive to store and deliver WAPT packages.

Using the register() function in your audit scripts¶

The register() function forces the sending to the WAPT server of the WAPT agent’s hardware and software inventory.

This function is very taxing on the server’s performance because it forces the server to parse a relatively large JSON BLOB and to inject the result into the PostgreSQL database.

The function is by default triggered manually or when a new package upgrade is applied.

When you use the register() function in an audit script, it will run every time the audit script is triggered and load the server with no apparent benefit.

Therefore, we do not recommend the use of the register() function in audit scripts.

EWaptBadControl: ‘utf8’ codec can’t decode byte¶

If you get this message, it may mean that you have not set up correctly your development environment. Visit this section of the documentation on setting up UTF-8 (no BOM).

I have a lot more hosts in the console than I have host packages on my server?¶

Following a remark from Philippe LEMAIRE from the Lycée Français Alexandre Yersin in Hanoï, if you use the Enterprise version of WAPT and you make heavy use of the unit packages or profile packages, you may realize that you will have many more hosts in your console than host packages on you WAPT server. This is normal.

In fact unit packages and profile packages are not explicitly assigned to the host (i.e. as dependencies in the host package) but are implicitly taken into account by the WAPT agent dependency engine during the WAPT upgrade.

So one might have no host package on the server if only unit packages are used for managing a fleet of devices.

Frequent problems¶

Resetting the WAPT Linux Server password¶

I lost my WAPT private key¶

Generating or renewing a private key¶

Re-signing packages in the repositories¶

My private key has been stolen¶

My BIOS UUID bugs¶

Solving the BIOS UUID issue¶

WAPTdeploy does not work¶

Symptoms¶

Launching WAPTdeploy locally¶

WAPTdeploy works manually but does not work with GPO¶

Windows does not wait for the network to be up on startup¶

WAPT Exit will not launch¶

Solution: Hybrid shutdown¶

Windows Home edition¶

Corrupted local GPO¶

WAPTExit halts after 15 minutes and does not finish the installing the packages¶

Solution: increase the installation timeout¶

Error message when opening the WAPT console¶

Version check¶

Connection refused¶

Service unavailable¶

Error connecting with SSL … verify failed¶

Problems with registering a host with WAPT¶

Problems when enabling enable-check-certificate¶

Message “Certificate CN ### sent by server does not match URL host ###”¶

Problems when creating a package¶

Problems with access rights and PyScripter¶

Solution¶

My WAPT package is too big and I can not upload it on the repository¶

Solution¶

Access violation error on packet re-signing¶

WAPT package in error¶

Problem installing a package¶

Symptoms¶

Explanation¶

Solution¶

Error “timed out after seconds with output ‘600.0’”¶

Symptoms¶

Explanation¶

Solution¶

Error “has been installed but the uninstall key can not be found”¶

Symptoms¶

Explanation¶

Solution¶

Error “has been installed and the uninstall key found but version is not good”¶

Symptoms¶

Explanation¶

Solution¶

Solution: with install_msi_if_needed¶

Solution: with install_exe_if_needed¶

Frequent problems caused by Anti-Virus software¶

I have an issue with my proxy - THttpClientSocket.SockRecv(1) read = 0¶

Common mistakes¶

How to move my repository to another partition¶

Linux¶

Debian / Ubuntu¶

Centos / RedHat¶

Windows¶

Using a network drive to store and deliver WAPT packages¶

Using the register() function in your audit scripts¶

EWaptBadControl: ‘utf8’ codec can’t decode byte¶

I have a lot more hosts in the console than I have host packages on my server?¶

Solution: with `install_msi_if_needed`¶

Solution: with `install_exe_if_needed`¶
