This section of the documentation covers the daily use of WAPT.

All WAPT functionalities are explained in detail for the Administrators, the Users and the Package Deployers.

Deploying the WAPT agent

Windows

Two methods are available to deploy the waptagent.exe.

  • The first method is manual and the procedure must be applied on each machine.

  • The second one is automated and relies on a GPO.

Note

The waptagent.exe installer is available at WAPT serveur web home page. The direct download link is for example: https://srvwapt.mydomain.lan/wapt/waptagent.exe.

Warning

If you do not sign the waptagent.exe installer with a commercial Code Signing certificate or a Code Signing certificate issued by the Certificate Authority of your Organization after having generated it, web browsers will show a warning message when downloading the installer. To remove the warning message, you must sign the .exe with a Code Signing certificate that can be verified by a CA bundle stored in the machine’s certificate store.

Manually

Attention

Manually installing the WAPT agent requires Local Administrator rights on the computer. Manually installing the WAPT agent using a Domain Admin account WILL NOT WORK.

Hint

When to deploy the WAPT agent manually?

Manual deployment method is efficient in these cases:

  • Testing WAPT.

  • Using WAPT in an organization with a small number of computers.

  • If you don’t have a means of mass deployment.

  • Download the WAPT agent from your WAPT server then launch the installer.

Download the WAPT agent to be deployed on computers

Download the WAPT agent to be deployed on computers

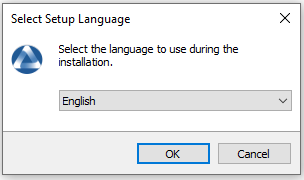

  • Choose the language and click on OK to go to next step.

    Choose the installation language

    Choose the installation language

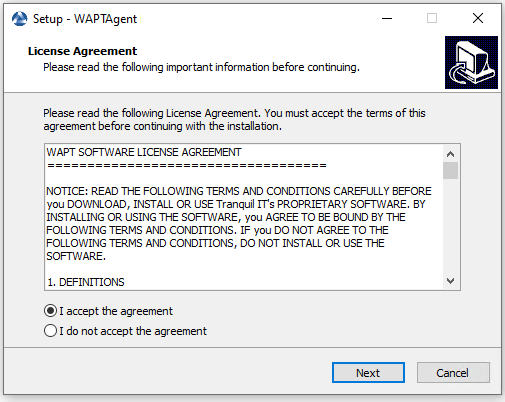

  • Accept the license terms and click on Next to go to next step.

    Accepting the EULA

    Accepting the EULA

  • Choose the additional parameters and click on Next to go to next step.

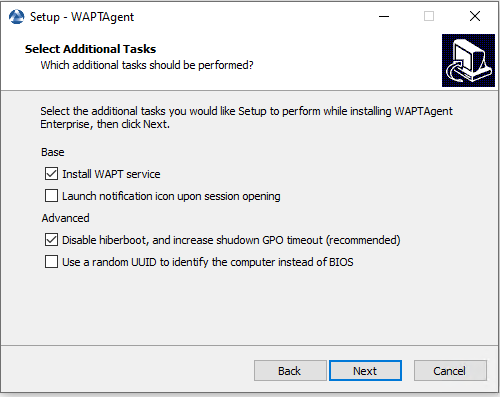

    Choose the installer's options

    Choose the installer’s options

    Avialable options

    Settings

    Description

    Default value

    Install WAPT service

    Add WAPT service on your computer

    Checked

    Launch notification icon upon session opening

    Launch waptagent on systray at startup

    Not checked

    Disable hiberboot, and increase shutdown GPO timeout (recommended)

    Disable Windows fast startup for stability, enlarge timout for WAPTexit

    Checked

    Use a random UUID to identify the computer instead of BIOS

    To resolve BIOS UUID bugs

    Not checked

  • Choose the WAPT repository and the WAPT Server and click on Next to go to next step.

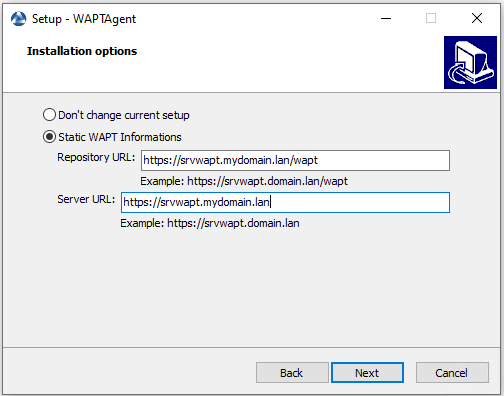

    Choose the WAPT repository and server

    Choose the WAPT repository and server

  • Install the WAPT agent by clicking on Install.

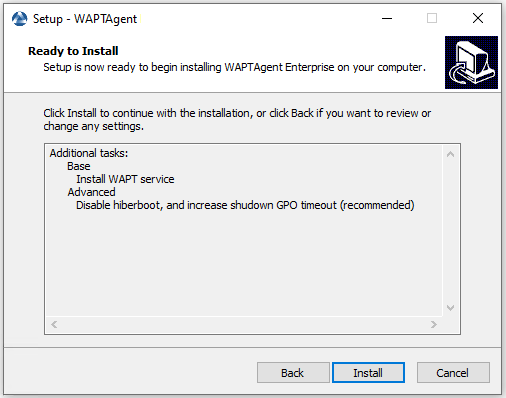

    Summary of installation options

    Summary of installation options

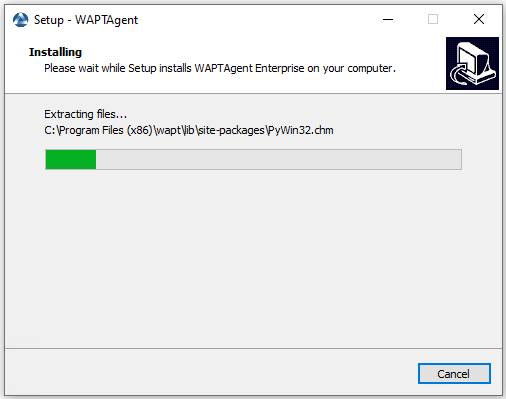

  • Wait for the installation of the WAPT agent to finish, then click on Finish to exit.

    Installation in progress

    Installation in progress

The installation of the WAPT agent is finished. The registration of the host with the WAPT server is done automatically.

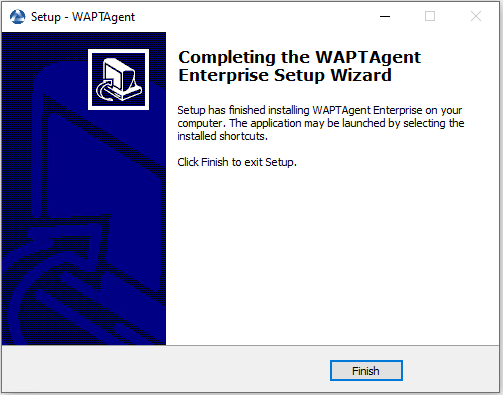

End of WAPT agent installation

End of WAPT agent installation

To manage your Organization’s WAPT clients, visit the documentation on using the WAPT console.

Automatically

Important

Technical pre-requisites

Advanced network and system administration knowledge is required to achieve this procedure. A properly configured network will ensure its success.

Hint

When to deploy the WAPT agent automatically?

The following method is useful in these cases:

  • A large organization with many computers.

  • A Samba Active Directory or Microsoft Active Directory for which you have enough administration privileges.

  • The security and the traceability of actions are important to you or to your Organization.

With waptdeploy

waptagent.exe is an InnoSetup installer, it can be executed with these silent argument:

waptagent.exe /VERYSILENT

  • Additional arguments are available for waptdeploy.

Description of available options for deploying the WAPT agent silently

Options

Description

/dnsdomain = mydomain.lan

Domain in wapt-get.ini filled in during installation.

/wapt_server = https://srvwapt.mydomain.lan
URL of the WAPT server in wapt-get.ini

filled in during installation.

/repo_url = https://repo1.mydomain.lan/wapt

URL of the WAPT repository in wapt-get.ini filled in during installation.

/StartPackages = basic-group

Group of WAPT packages to install by default.

/verify_cert= = 1 or relative path ssl\server\srvwapt.mydomain.lan.crt.

Value of verify_cert entered during installation.

/CopyServersTrustedCA = path to a bundle to copy to ssl\server

Certificate bundle for https connections (to be defined by verify_cert).

/CopypackagesTrustedCA = path to a certificate bundle to copy into ssl

Certificate bundle for verifying package signatures.

Hint

The iss file for the InnoSetup installer is available here: C:\Program Files (x86)\wapt\waptsetup\waptsetup.iss.

You may choose to adapt it to your specific needs. Once modified, you’ll just have to recreate a waptagent.

To learn more about the options available with InnoSetup, visit this documentation

With waptdeploy

waptdeploy is a small binary that:

  • Checks the version of the WAPT agent.

  • Downloads via https the waptagent.exe installer.

  • Launches the silent installer with arguments (checked options defined during the compilation of the WAPT agent).

    /VERYSILENT /MERGETASKS= ""useWaptServer""
  • Updates the WAPT Server with the WAPT agent status

    (WAPT version, package status).

Warning

waptdeploy must be started as Local Administrator,

that is why we advise you to use a GPO.

Download waptdeploy.exe from you’r WAPT server homepage.

Download the waptdeploy

Download the waptdeploy

With a GPO
  • Create a new group strategy on the Active Directory server (Microsoft

    Active Directory or Samba-AD).

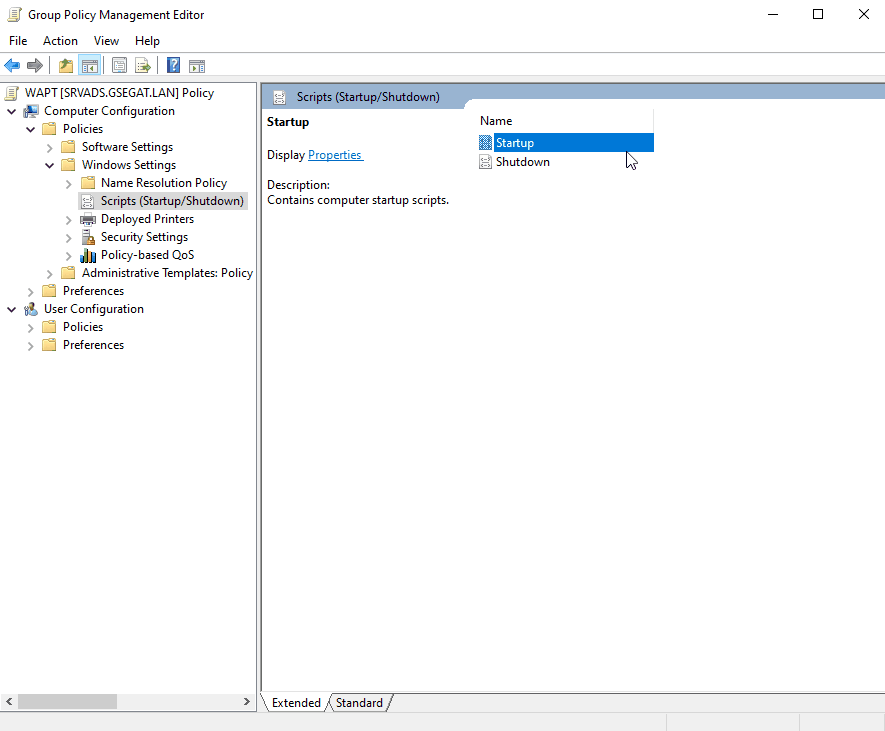

  • Add a new strategy with Computer configuration ‣ Policies ‣ Windows Settings ‣ Scripts ‣ Startup ‣ Properties ‣ Add.

    Creating a group strategy to deploy the WAPT agent

    Creating a group strategy to deploy the WAPT agent

  • Click on Browse to select the waptdeploy.exe.

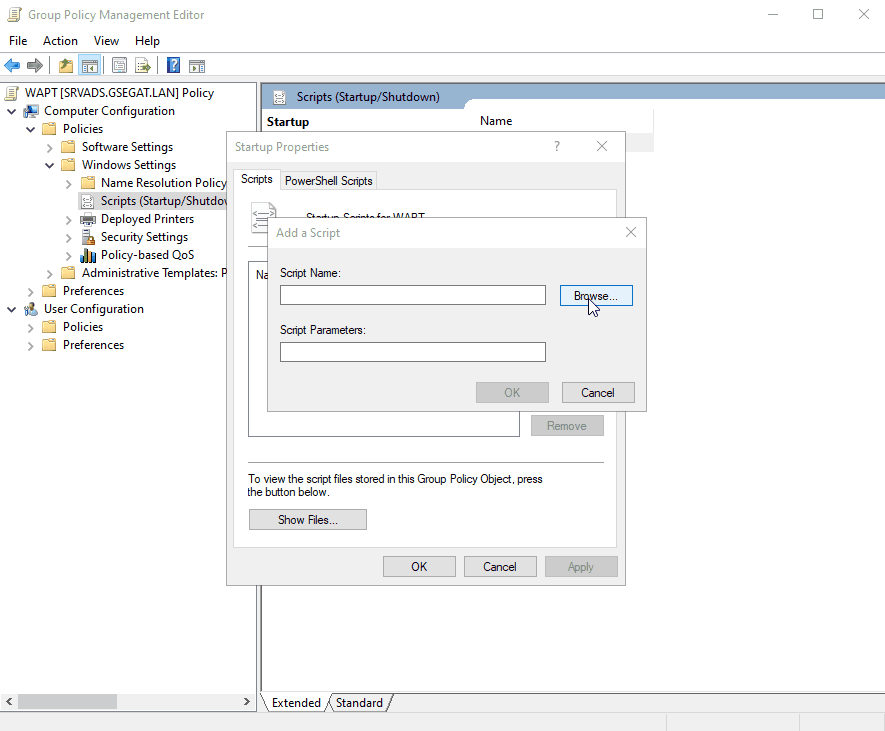

    Finding the waptdeploy.exe file on your computer

    Finding the waptdeploy.exe file on your computer

  • Copy waptdeploy.exe in the destination folder.

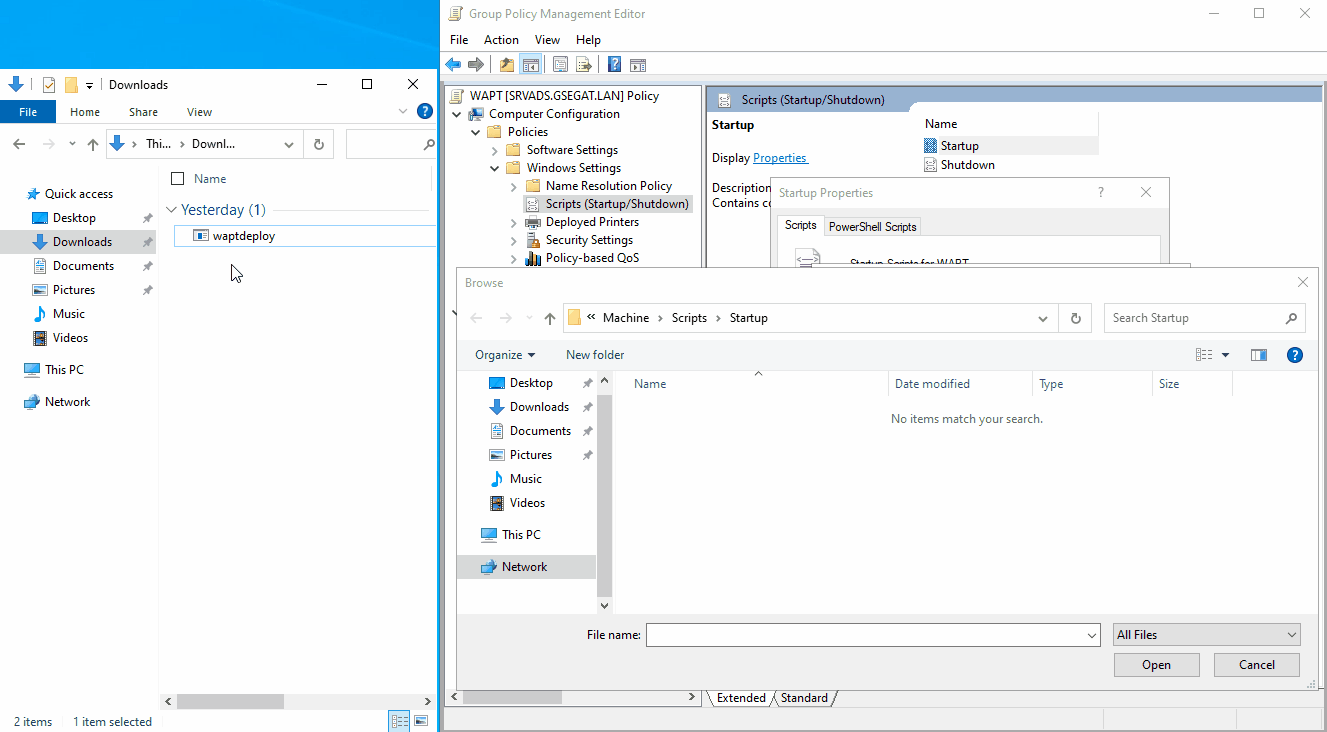

    Selecting the waptdeploy.exe script

    Selecting the waptdeploy.exe script

  • Click on Open to import the waptdeploy.exe.

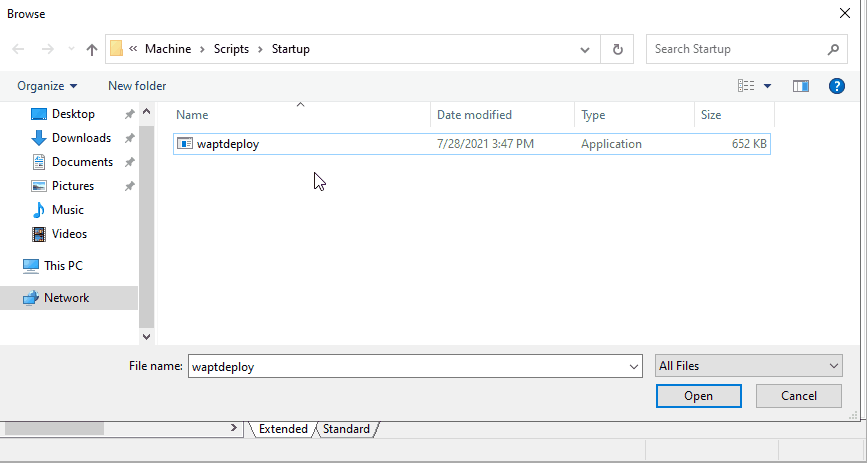

    Selecting the waptdeploy.exe script

    Selecting the waptdeploy.exe script

  • Click on Open to confirm the importation of the waptdeploy binary.

Hint

It is necessary to provide the checksum of the waptagent.exe

as an argument to the waptdeploy GPO.

This will prevent the remote host from executing an erroneous / corrupted

waptagent binary.

--hash=checksum WaptAgent --minversion=1.2.3 --wait=15 --waptsetupurl=http://srvwapt.mydomain.lan/wapt/waptagent.exe
Parameters and waptagent.exe checksum

to use for the waptdeploy GPO are available on the WAPT Server by visiting https://srvwapt.mydomain.lan.

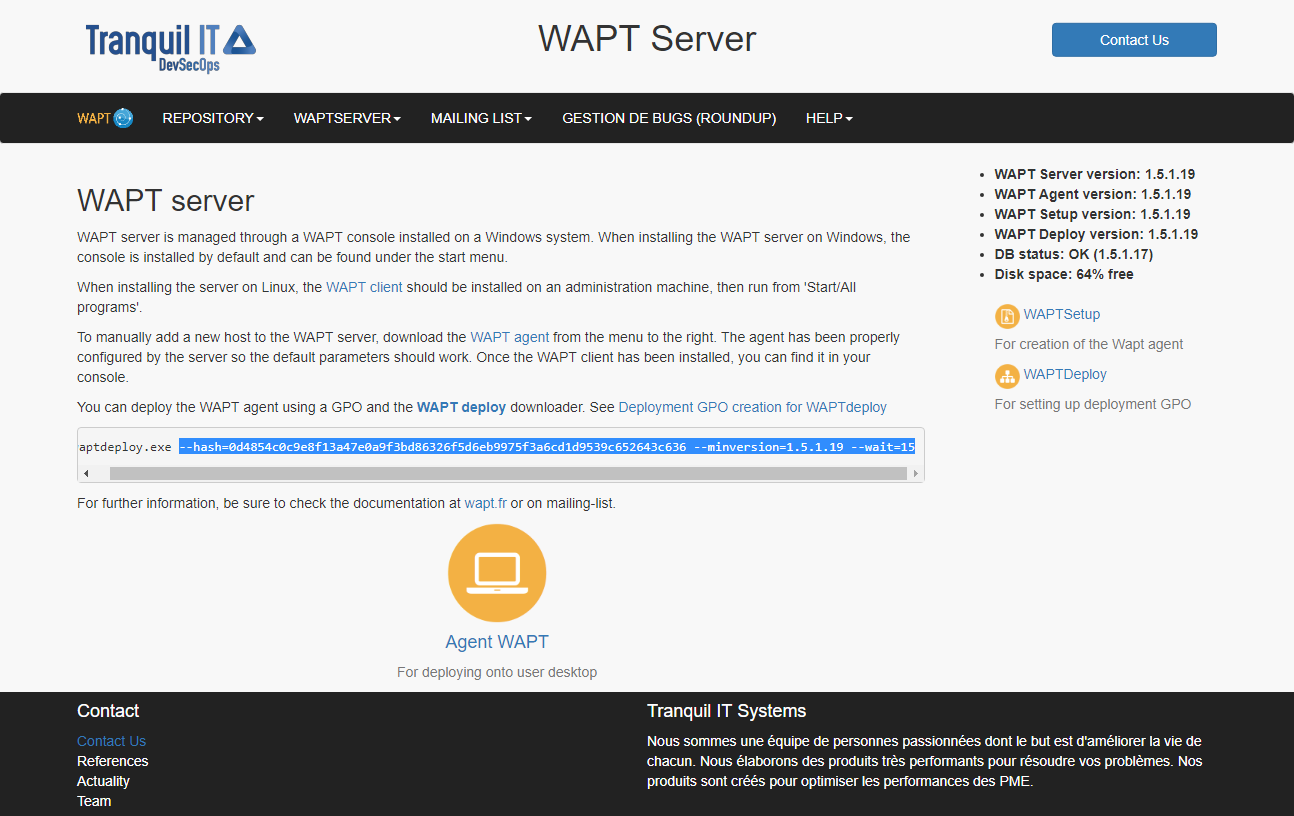

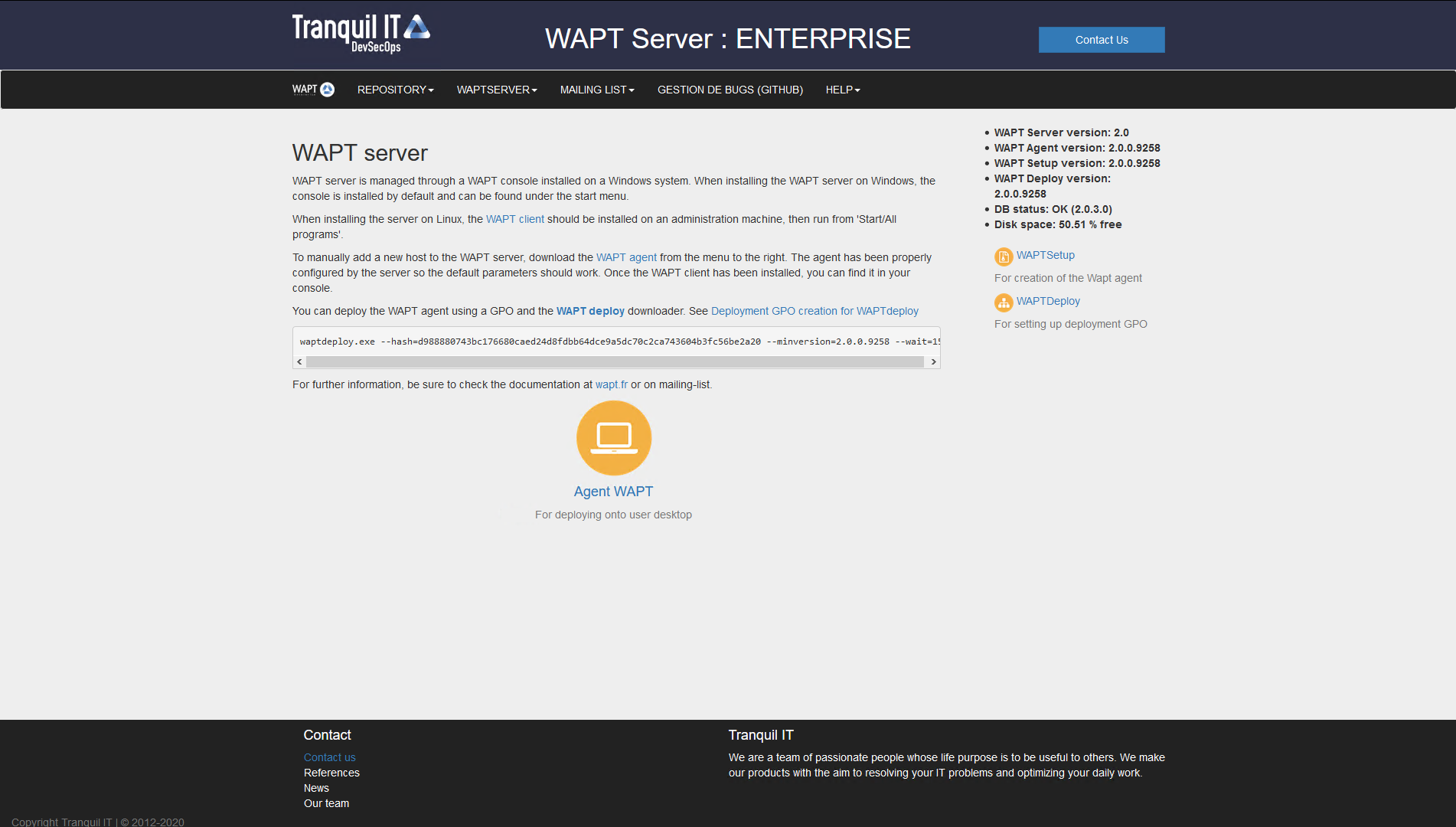

Web console of the WAPT Server

Web console of the WAPT Server

  • Copy the required parameters.

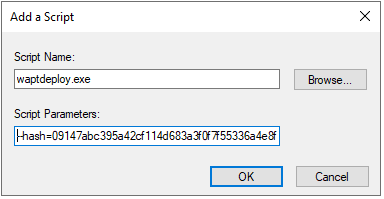

    add the *waptdeploy* script to the startup GPO

    add the waptdeploy script to the startup GPO

  • Click on OK to go on to the next step.

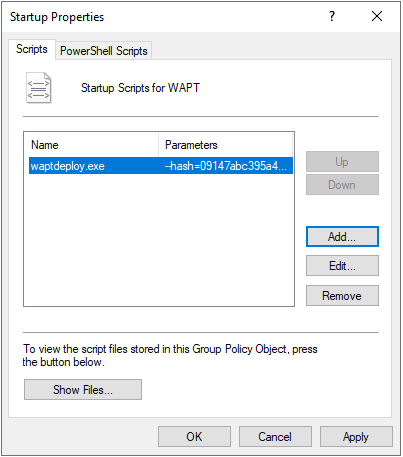

    WAPTdeploy GPO to be deployed on next startup

    WAPTdeploy GPO to be deployed on next startup

  • Click on OK to go on to the next step.

  • Apply resulting GPO strategy to the Organization’s Computers OU.

Note

We recommend adding waptdeploy.exe to the startup

and shutdown scripts on the GPO.

Hint

More arguments are available for waptdeploy

Description of available options for waptdeploy

Options

Description

--force

Install waptagent.exe even if not needed.

--hash = <sha256hash>

Check that the downloaded waptagent.exe setup sha256 hash matches the hash.

--help

Displays the options

--minversion = 1.2.3

Install waptagent.exe if installed version is less than minversion.

--tasks = autorunTray,installService,installredist2008,autoUpgradePolicy
If given, pass this arguments to the /TASKS options of

the waptagent installer. Default = installService,installredist2008, autoUpgradePolicy.

--repo_url = https://srvwapt.mydomain.lan/wapt

Location of the repository to get waptagent.exe.

--setupargs = <options>

Add this to the command line of waptagent.exe.

--wait = <minutes>
Wait running and pending tasks to complete if waptservice is running

before install.

--waptsetupurl = https://srvwapt.mydomain.lan/wapt/waptagent.exe
Explicit location to download setup executable. Can be a local path

(default=:file:<repo_url>/waptagent.exe.


--hash="43254648348435423486"--minversion=2.0 --waptsetupurl=http://srvwapt.mydomain.lan/wapt/waptagent.exe --wait=10

With a scheduled task

You may also choose to launch waptdeploy using a scheduled task that has been set by GPO.

Hint

This method is particularly effective for deploying WAPT on workstations when the network is neither available on starting up or shutting down.

The method consists of using a GPO to copy locally waptdeploy.exe and waptagent.exe and create a scheduled task for installing.

  • Copy waptdeploy.exe and waptagent.exe in the netlogon share of your Active Directory Server (\mydomain.lan\netlogon\waptagent.exe).

  • Create a new group strategy on the Active Directory server (Microsoft

    Active Directory or Samba-AD).

  • Add a new strategy with Computer configuration ‣ Preferences ‣ Windows Settings ‣ Files.

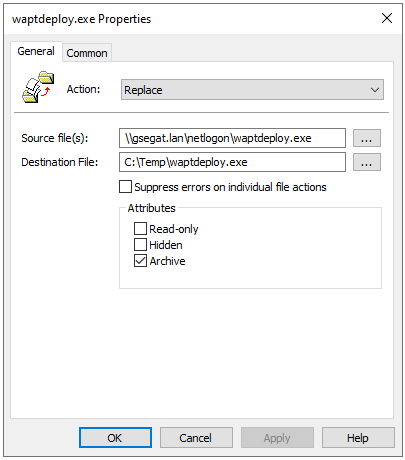

  • Create a new file and copy waptdeploy.

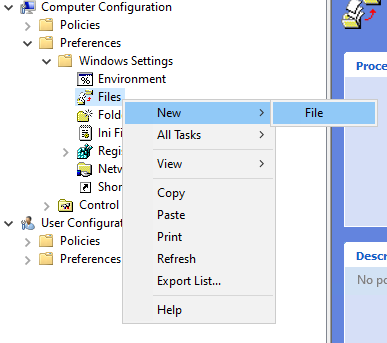

    New file on GPO

    New file on GPO

  • Set parameters.

    Description of options for copy

    Options

    Value

    Action

    Replace

    Source file(s)

    \mydomain.lan\netlogon\waptdeploy.exe

    Destination File

    C:\Temp\waptdeploy.exe

    Suppress errors on individual file actions

    not checked

    Read-only

    not checked

    Hidden

    not checked

    Archive

    checked
    WAPT agent installation progress

    WAPT agent installation progress

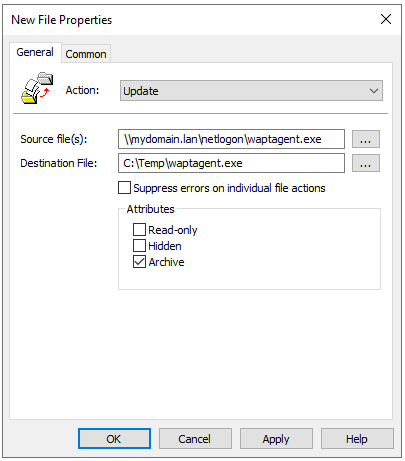

  • Create a new file and copy waptagent.

    New file on GPO

    New file on GPO

  • Set parameters.

    Description of options for copy

    Options

    Value

    Action

    Replace

    Source file(s)

    \mydomain.lan\netlogon\waptagent.exe

    Destination File

    C:\Temp\waptagent.exe

    Suppress errors on individual file actions

    not checked

    Read-only

    not checked

    Hidden

    not checked

    Archive

    checked
    WAPT agent installation progress

    WAPT agent installation progress

  • Then go to the Scheduled Task menu with Computer configuration ‣ Preferences ‣ Control Panel Settings ‣ Scheduled Tasks.

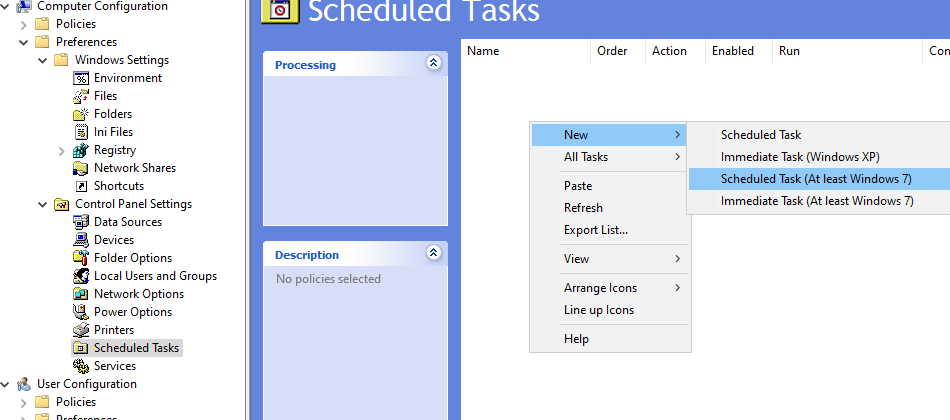

  • Create a new Scheduled Task with Right-click ‣ New ‣ Scheduled Task (At least Windows 7).

    Task Create in *deploywapt* Properties window

    Task Create in deploywapt Properties window

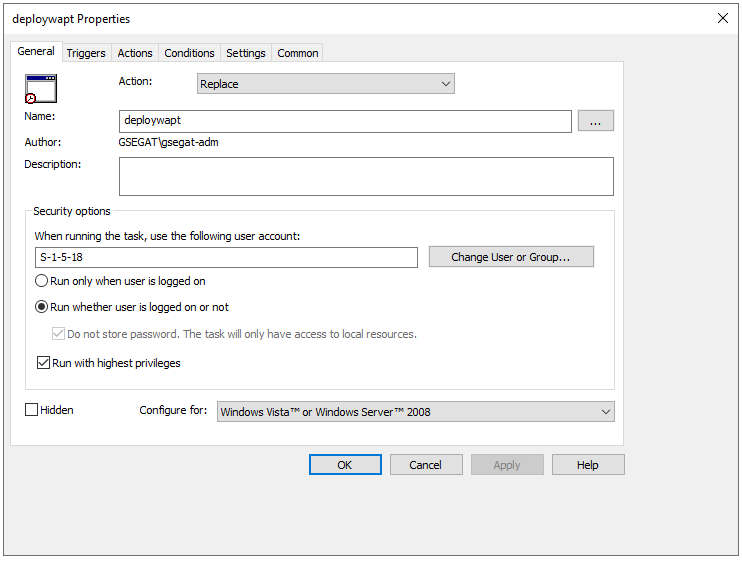

General tab in *deploywapt* Properties window

General tab in deploywapt Properties window

  • Set Action to Replace.

  • For When running the task, use the following user account

    paste S-1-5-18 (system account). You can visit for more information.

  • Check Run whether user is logged on or not.

  • Check Run with highest privileges,

    then go on to the Triggers tab.

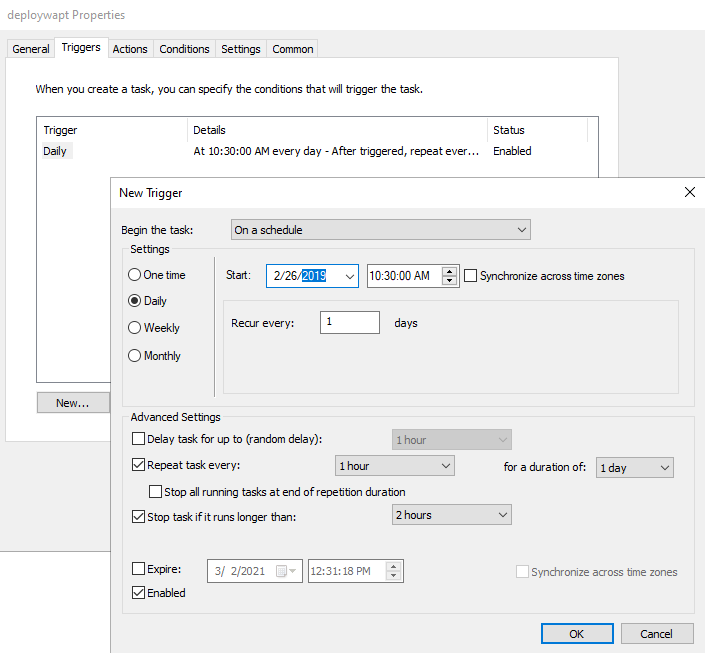

    Trigger tab in *deploywapt* Properties window

    Trigger tab in deploywapt Properties window

  • Create a new trigger.

  • Check Daily, select today’s date.

  • Check Repeat Task every and select 1 hour

    and for a duration of select 1 day.

  • Check Stop task if it runs longer than

    and select 2 hours.

  • Check that Enabled is checked,

    and then go to the Actions tab.

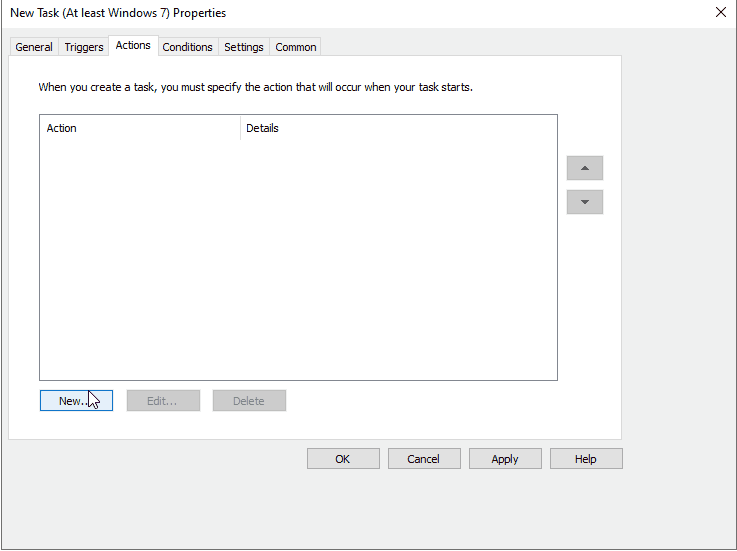

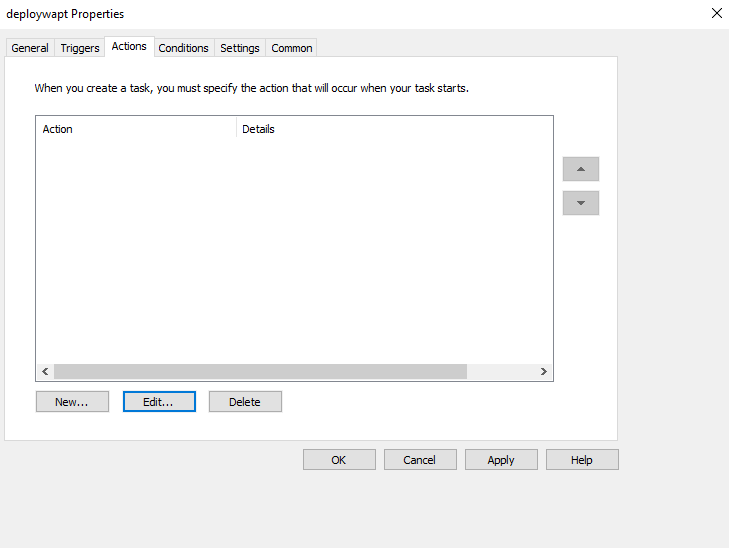

    Actions tab

  • Create a new action Start a program for waptdeploy.exe.

    Actions tab
    Description of options to copy

    Options

    Value

    Action

    Start a program

    Program / script

    C:\Temp\waptagent.exe

    Add arguments (optional)

    See the next point

    Start in (optional)

    empty

Hint

It is necessary to provide the checksum of the waptagent.exe

as an argument to the waptdeploy. This will prevent the remote host from executing an erroneous / corrupted waptagent binary.

--hash=checksum WaptAgent --minversion=1.2.3 --wait=15 --waptsetupurl=http://srvwapt.mydomain.lan/wapt/waptagent.exe
Parameters and the waptagent.exe checksum to use

for the waptdeploy GPO are available on the WAPT Server by visiting https://srvwapt.mydomain.lan.

Web console of the WAPT Server

Web console of the WAPT Server

  • Copy the required parameters and change waptsetupurl

    to C:\Temp\waptagent.exe.

    --hash=checksum WaptAgent --minversion=1.2.3 --wait=15 --waptsetupurl=C:\Temp\waptagent.exe

Hint

More arguments are available for waptdeploy

Description of available options for waptdeploy

Options

Description

--force

Install waptagent.exe even if not needed

--hash = <sha256hash>

Check that the downloaded waptagent.exe setup sha256 hash matches the hash.

--help

Displays the options.

--minversion = 1.2.3

Install waptagent.exe if installed version is less than minversion.

--tasks = autorunTray,installService,installredist2008,autoUpgradePolicy
If given, pass this arguments to the /TASKS options

of the waptagent installer. Default = installService,installredist2008, autoUpgradePolicy

--repo_url = https://srvwapt.mydomain.lan/wapt

Location of repository to get the waptagent.exe.

--setupargs = <options>

Add this to the command line of waptagent.exe.

--wait = <minutes>
Wait running and pending tasks to complete if waptservice

is running before install.

--waptsetupurl = https://srvwapt.mydomain.lan/wapt/waptagent.exe
Explicit location to download setup executable.

This can be a local path (default=:file:<repo_url>/waptagent.exe).

  • Go on to the Settings tab.

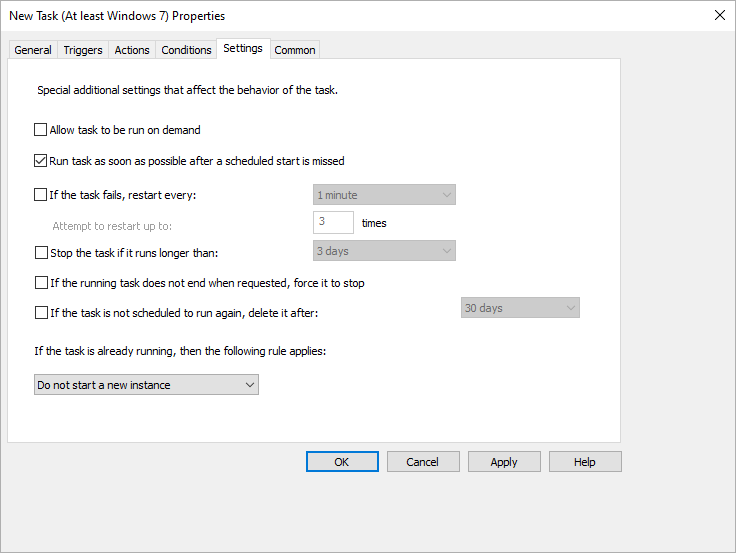

    Settings tab in *deploywapt* Properties window

    Settings tab in deploywapt Properties window

  • In the Settings tab, only check Run task as soon as possible after a scheduled start is missed.

Hint

To verify that your GPO is working,

you can run the gpupdate /force command and verify that the scheduled task is present on your computer by launching Task Scheduler as a Local Administrator.

Linux

A Linux agent is available for Debian, Ubuntu and RedHat / Centos.

Note

The following procedure installs a WAPT agent using Tranquil IT’s repositories;

Debian

Discovery

Important

Follow this procedure for getting the right packages for the WAPT Discovery

Edition. For WAPT Enterprise Edition please refer to the next block.

Note

Not Available as of 2024-09-20.

WAPT Discovery will be release later. For the free version,

refer to wapt-1.8 documentation https://www.wapt.fr/en/doc-1.8/

Enterprise

Important

Follow this procedure for getting the right packages for the WAPT Enterprise

Edition. For WAPT Discovery Edition please refer to the previous block.

  • Update the distribution :

apt update && apt upgrade -y

  • Install apt-transport-https for the use of https :

apt install apt-transport-https lsb-release gnupg

  • Retrieving the key .gpg and adding the Tranquil’iT repository :

wget -O - https://wapt.tranquil.it/debian/tiswapt-pub.gpg  | apt-key add -
echo "deb https://srvwapt-pro.tranquil.it/entreprise/debian/wapt-2.0/ $(lsb_release -c -s) main" > /etc/apt/sources.list.d/wapt.list

  • Create wapt.conf in /etc/apt/auth.conf.d to store your login information

Hint

Replace user and password to access WAPT Enterprise repository, with those provided by our sales department.

cat > /etc/apt/auth.conf.d/wapt.conf <<EOF
machine srvwapt-pro.tranquil.it
login user
password password
EOF

  • Apply the following rights

chmod 600 /etc/apt/auth.conf.d/wapt.conf

  • install WAPT agent using apt-get:

export DEBIAN_FRONTEND=noninteractive
apt update
apt install tis-waptagent -y
unset DEBIAN_FRONTEND

Creating the agent configuration file

Hint

Use your server address for repo_url and wapt_server.

cat > /opt/wapt/wapt-get.ini <<EOF
[global]
repo_url=https://srvwapt.mydomain.lan/wapt
wapt_server=https://srvwapt.mydomain.lan
use_hostpackages=1
use_kerberos=0
verify_cert=0
EOF

Copying the package-signing certificate

You need to copy manually, or by script, the public certificate of your package signing certificate authority.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\.

Copy your certificate(s) in /opt/wapt/ssl using WinSCP or rsync if you are deploying on Linux or MacOS.

Copying the SSL/TLS certificate

If you already have configured your WAPT server to correctly use Nginx SSL/TLS certificates, you must copy the certificate in your WAPT Linux agent.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\server\.

  • Copy your certificate(s) in /opt/wapt/ssl/server/ using WinSCP or rsync if you are deploying on Linux or MacOS.

  • Then, modify in your /opt/wapt/wapt-get.ini config file the ABSOLUTE path to your certificate.

Hint

Change YOURCERT.crt by your certificate name.

verify_cert=/opt/wapt/ssl/server/YOURCERT.crt

Registering your Linux host with the WAPT Server

  • Restart the WAPT service.

systemctl restart waptservice.service

  • Finally, execute the following command to register your Linux host with the WAPT server.

1wapt-get register
2wapt-get update

Congratulations, your Linux Agent is now installed and configured and it will now appear in your WAPT Console with a penguin icon!!

Unsupported features

  • Installing updates on shutdown.

  • WAPT console is not currently available on Linux.

  • Any Windows specific feature.

Particularities with domain functionality

  • Testing was carried out with sssd with a Samba and Windows Active Directory domain controller and kerberos authentication.

  • To integrate a machine in the Active Directory domain, you can choose to follow this documentation.

  • To force the update of Organizational Units on the host, you can apply a gpupdate from the WAPT console.

  • In order for Active Directory groups to function properly, you must verify that the id hostname$ command returns the list of groups the host is member of.

Attention

We have noticed that the kerberos LDAP query does not work if the reverse DNS record is not configured correctly for your domain controllers. These records must therefore be created if they do not exist.

Ubuntu

Discovery

Important

Follow this procedure for getting the right packages for the WAPT Discovery Edition. For WAPT Enterprise Edition please refer to the next block.

Note

Not Available as of 2024-09-20.

WAPT Discovery will be release later. For the free version, refer to wapt-1.8 documentation https://www.wapt.fr/en/doc-1.8/

Enterprise

Important

Follow this procedure for getting the right packages for the WAPT Enterprise Edition. For WAPT Discovery Edition please refer to the previous block.

  • Update the distribution :

apt update && apt upgrade -y

  • Install apt-transport-https for the use of https :

apt install apt-transport-https lsb-release gnupg

  • Retrieving the key .gpg and adding the Tranquil’iT repository :

wget -O - https://wapt.tranquil.it/debian/tiswapt-pub.gpg  | apt-key add -
echo "deb https://srvwapt-pro.tranquil.it/entreprise/ubuntu/wapt-2.0/ $(lsb_release -c -s) main" > /etc/apt/sources.list.d/wapt.list

  • Create wapt.conf in /etc/apt/auth.conf.d to store your login information

Hint

Replace user and password to access WAPT Enterprise repository, with those provided by our sales department.

cat > /etc/apt/auth.conf.d/wapt.conf <<EOF
machine srvwapt-pro.tranquil.it
login user
password password
EOF

  • Apply the following rights

chmod 600 /etc/apt/auth.conf.d/wapt.conf

  • install WAPT agent using apt-get:

export DEBIAN_FRONTEND=noninteractive
apt update
apt install tis-waptagent
unset DEBIAN_FRONTEND

Creating the agent configuration file

Hint

Use your server address for repo_url and wapt_server.

cat > /opt/wapt/wapt-get.ini <<EOF
[global]
repo_url=https://srvwapt.mydomain.lan/wapt
wapt_server=https://srvwapt.mydomain.lan
use_hostpackages=1
use_kerberos=0
verify_cert=0
EOF

Copying the package-signing certificate

You need to copy manually, or by script, the public certificate of your package signing certificate authority.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\.

Copy your certificate(s) in /opt/wapt/ssl using WinSCP or rsync if you are deploying on Linux or MacOS.

Copying the SSL/TLS certificate

If you already have configured your WAPT server to correctly use Nginx SSL/TLS certificates, you must copy the certificate in your WAPT Linux agent.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\server\.

  • Copy your certificate(s) in /opt/wapt/ssl/server/ using WinSCP or rsync if you are deploying on Linux or MacOS.

  • Then, modify in your /opt/wapt/wapt-get.ini config file the ABSOLUTE path to your certificate.

Hint

Change YOURCERT.crt by your certificate name.

verify_cert=/opt/wapt/ssl/server/YOURCERT.crt

Registering your Linux host with the WAPT Server

  • Restart the WAPT service.

systemctl restart waptservice.service

  • Finally, execute the following command to register your Linux host with the WAPT server.

1wapt-get register
2wapt-get update

Congratulations, your Linux Agent is now installed and configured and it will now appear in your WAPT Console with a penguin icon!!

Unsupported features

  • Installing updates on shutdown.

  • WAPT console is not currently available on Linux.

  • Any Windows specific feature.

Particularities with domain functionality

  • Testing was carried out with sssd with a Samba and Windows Active Directory domain controller and kerberos authentication.

  • To integrate a machine in the Active Directory domain, you can choose to follow this documentation.

  • To force the update of Organizational Units on the host, you can apply a gpupdate from the WAPT console.

  • In order for Active Directory groups to function properly, you must verify that the id hostname$ command returns the list of groups the host is member of.

Attention

We have noticed that the kerberos LDAP query does not work if the reverse DNS record is not configured correctly for your domain controllers. These records must therefore be created if they do not exist.

CentOS

Discovery

Important

Follow this procedure for getting the right packages for the WAPT Discovery Edition. For WAPT Enterprise Edition please refer to the next block.

Note

Not Available as of 2024-09-20.

WAPT Discovery will be release later. For the free version, refer to wapt-1.8 documentation https://www.wapt.fr/en/doc-1.8/

Enterprise

The most secure and reliable way to install the latest WAPT agent on Linux CentOS is using Tranquil IT’s public repository.

Important

Follow this procedure for getting the right packages for the WAPT Enterprise Edition. For WAPT Discovery Edition please refer to the previous block.

To access WAPT Enterprise resources, you must use the username and password provided by our sales department.

  • Update the distribution :

yum update

  • Retrieving the key .gpg :

wget -q -O /tmp/tranquil_it.gpg "https://wapt.tranquil.it/centos7/RPM-GPG-KEY-TISWAPT-7"; rpm --import /tmp/tranquil_it.gpg

  • Adding the Tranquil’iT repository

cat > /etc/yum.repos.d/wapt.repo <<EOF
[wapt]
name=WAPT Server Repo
baseurl=https://srvwapt-pro.tranquil.it/entreprise/centos7/wapt-2.0/
enabled=1
gpgcheck=1
EOF

  • install WAPT agent using yum:

yum install tis-waptagent

Creating the agent configuration file

Hint

Use your server address for repo_url and wapt_server.

cat > /opt/wapt/wapt-get.ini <<EOF
[global]
repo_url=https://srvwapt.mydomain.lan/wapt
wapt_server=https://srvwapt.mydomain.lan
use_hostpackages=1
use_kerberos=0
verify_cert=0
EOF

Copying the package-signing certificate

You need to copy manually, or by script, the public certificate of your package signing certificate authority.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\.

Copy your certificate(s) in /opt/wapt/ssl using WinSCP or rsync if you are deploying on Linux or MacOS.

Copying the SSL/TLS certificate

If you already have configured your WAPT server to correctly use Nginx SSL/TLS certificates, you must copy the certificate in your WAPT Linux agent.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\server\.

  • Copy your certificate(s) in /opt/wapt/ssl/server/ using WinSCP or rsync if you are deploying on Linux or MacOS.

  • Then, modify in your /opt/wapt/wapt-get.ini config file the ABSOLUTE path to your certificate.

Hint

Change YOURCERT.crt by your certificate name.

verify_cert=/opt/wapt/ssl/server/YOURCERT.crt

Registering your Linux host with the WAPT Server

  • Restart the WAPT service.

systemctl restart waptservice.service

  • Finally, execute the following command to register your Linux host with the WAPT server.

1wapt-get register
2wapt-get update

Congratulations, your Linux Agent is now installed and configured and it will now appear in your WAPT Console with a penguin icon!!

Unsupported features

  • Installing updates on shutdown.

  • WAPT console is not currently available on Linux.

  • Any Windows specific feature.

Particularities with domain functionality

  • Testing was carried out with sssd with a Samba and Windows Active Directory domain controller and kerberos authentication.

  • To integrate a machine in the Active Directory domain, you can choose to follow this documentation.

  • To force the update of Organizational Units on the host, you can apply a gpupdate from the WAPT console.

  • In order for Active Directory groups to function properly, you must verify that the id hostname$ command returns the list of groups the host is member of.

Attention

We have noticed that the kerberos LDAP query does not work if the reverse DNS record is not configured correctly for your domain controllers. These records must therefore be created if they do not exist.

MacOS

Attention

Currently, the agent has only been tested on :

Discovery

Important

Follow this procedure for getting the right packages for the WAPT Discovery Edition. For WAPT Enterprise Edition please refer to the next block.

Note

Not Available as of 2024-09-20.

WAPT Discovery will be release later. For the free version, refer to wapt-1.8 documentation https://www.wapt.fr/en/doc-1.8/

Enterprise

Important

On the date of 2024-09-20 you have to use the last nitghtly 2.1 repository :

https://srvwapt-pro.tranquil.it/entreprise/nightly/

Important

Follow this procedure for getting the right packages for the WAPT Enterprise Edition. For WAPT Discovery Edition please refer to the previous block.

To access WAPT Enterprise resources, you must use the username and password provided by our sales department.

On the command line

Hint

Replace user and password in the baseurl parameter to access WAPT Enterprise repository.

  • recovery of the list of available files

sudo curl --user "user:password" https://srvwapt-pro.tranquil.it/entreprise/release/latest/

  • on result, copy tis-waptagent-enterprise-version-macos-hash.pkg;

  • create the complete link with :

    1. https://srvwapt-pro.tranquil.it/entreprise/release/latest/

    and

    1. tis-waptagent-enterprise-version-macos-hash.pkg copied previously;

  • download WAPT agent :

Attention

Remplace <PastedLink> by link create before;

sudo curl -user "user:password" <PastedLink> --output tis-waptagent.pkg

  • install the downloaded package:

sudo installer -pkg tis-waptagent.pkg -target /
Creating the agent configuration file

Hint

Use your server adress on repo_url and wapt_server.

sudo cat > /opt/wapt/wapt-get.ini <<EOF
[global]
repo_url=https://srvwapt.mydomain.lan/wapt
wapt_server=https://srvwapt.mydomain.lan
use_hostpackages=1
use_kerberos=0
verify_cert=0
EOF
Copying the package-signing certificate

You need to copy manually, or by script, the public certificate of your package signing certificate authority.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\.

Copy your certificate(s) in /opt/wapt/ssl using WinSCP or rsync if you are deploying on Linux or MacOS.

Copying the SSL/TLS certificate

If you already have configured your WAPT server to use correct Nginx SSL/TLS certificates, you must copy the certificate in your WAPT Linux agent.

The certificate should be located on your Windows machine in C:\Program Files (x86)\wapt\ssl\server\.

  • Copy your certificate(s) in /opt/wapt/ssl/server/ using WinSCP or rsync if you are deploying on Linux or MacOS.

  • Then, modify in your /opt/wapt/wapt-get.ini config file the path to your certificate.

  • And give absolute path of your cert.

verify_cert=/opt/wapt/ssl/server/YOURCERT.crt

Hint

Change YOURCERT.crt by your certificate name.

Graphically

  • recovery the last .dpkg

https://srvwapt-pro.tranquil.it/entreprise/release/latest/

  • run the .dpkg

Registering

  • restart the WAPT service:

sudo launchctl unload  /Library/LaunchDaemons/it.tranquil.waptservice.plist
sudo launchctl load /Library/LaunchDaemons/it.tranquil.waptservice.plist

  • finally, execute the following command to register your MacOS host with the WAPT server:

sudo wapt-get register

Your MacOS Agent is installed and configured and it will now appear in your WAPT Console with an apple icon.

Unsupported features

  • installing updates on shutdown;

  • WAPT console is not currently available on MacOS;

  • any Windows specific feature;

Particularities with domain functionality

  • testing was carried out with sssd with an Active Directory domain and kerberos authentication;

  • to integrate a machine in the Active Directory domain, you can choose to follow this documentation

  • to force the update of Organizational Units on the host, you can apply a gpupdate from the WAPT console;

  • in order for Active Directory groups to function properly, you must verify that the id hostname$ command returns the list of groups the host is member of;

Attention

We have noticed that the kerberos LDAP query does not work if the reverse DNS record is not configured correctly for your domain controllers. These records must therefore be created if they do not exist.

Updating the WAPT agents

For each server’s upgrade, you’ll have to upgrade WAPT agent.

To do so, you have to generate agent and deploy it.

Manually

You can do that manually, it’s the same as an agent installation.

Hint

It’s the only upgrade solution available for now for MacOS and Linux.

Via waptupgrade

While you generate WAPT agent, package named waptupgrade is created.

This package is a standard WAPT package designed to upgrade WAPT agents on client machines.

Hint

For now, waptupgrade only work for Windows.

Upgrading the WAPT agents using the waptupgrade package is a two step process:

  • first the package copies the new waptagent.exe file on the client computer and creates a new scheduled task that will run waptagent.exe with predefined installation flags two minutes after the creation of the scheduled task. At that point the package itself is installed and the inventory on the server shows the package installation as OK, with correct version installed, but the inventory will still show the old version as the agent is not yet updated.

  • after two minutes the scheduled task starts and runs waptagent.exe. waptagent.exe shutdowns the local WAPT service, upgrades the local WAPT install, and then restarts the service. The scheduled task is then automatically removed and the WAPT agent sends back its inventory to the WAPT server. Now the inventory on the server will show the new version of the agent.

It is recommanded to install waptupgrade on all hosts in order to get automtical updates for agents.
